International Industrial Pipe Valves: A Side-by-Side Contrast of Major Groups
With the constant development of industrial infrastructure around the world– from metropolitan water networks and long-distance oil and gas pipelines to petrochemical plants and fire security systems– valves, pipes, and fittings remain the unsung heroes that keep whatever moving. For procurement specialists and engineers, the obstacle is real: when faced with Round Valves, Butterfly Valves, Gateway Valves, World Valves, Inspect Valves, Control Valves, and Fire Protection Valves, exactly how do you pick the best one for the job? The response depends upon a handful of elements– media characteristics, exactly how frequently you run the valve, stress and temperature level scores, and the room you have for setup.
Datang, as a supplier operating with its very own independent site, has long concentrated on delivering a complete plan: shutoffs of all significant types, Stainless-steel Pipes and Carbon Steel Piping, and a complete schedule of Pipe Fittings. This post strolls you via a thorough comparison of the 7 most prominent shutoff groups, discuss the bottom lines of pipe product choice, and briefly covers fitting connection approaches– all to give you a clear course via the maze of industrial piping system selections.
1. Deep Dive into the 7 Significant Valve Categories

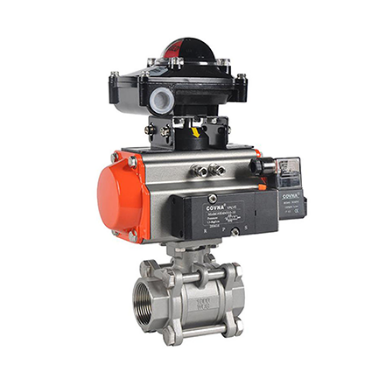

1.1 Round Valves– The Versatile Workhorse for Shut-Off Applications
A Ball Shutoff uses a round closure system with a bore with its facility, revolving 90 levels to open up or shut the flow path. Its worldwide appeal is no crash– it integrates reduced circulation resistance, fast quarter-turn operation, and reliable sealing performance. The valve seats are usually made from PTFE or enhanced polymers, which function perfectly in tidy media, gases, water, and gently harsh atmospheres. For high-pressure, large-diameter applications, the trunnion-mounted ball design is the best option; for smaller sized, economical lines, the drifting round arrangement gets the job done simply great.
That stated, Round Valves have their limits. Given that the securing relies on line call in between the round surface and the seat, any unpleasant fragments in the media can quickly damage the surface area and create interior leak. That makes them a bad suitable for slurry, without treatment flowing water, or any type of stream lugging solids. At heats, polymer seats might slip or flaw, which is why metal-seated or fire-safe styles come to be needed.
(Ball Valves)
Typical applications: gas distribution stations, refinery product, city gas networks, and purified water systems.
What Datang supplies: Stainless-steel (304/316L) and Carbon Steel (WCB) alternatives, floating and trunnion-mounted kinds, fire-safe and anti-static structures, and both split-body and welded-body layouts, with size ranges from DN15 up to DN600.
1.2 Butterfly Shutoffs– The Smart Choice for Large-Diameter Water Equipment
A Butterfly Valve utilizes a disc that revolves within the valve body to control flow. Its most significant marketing points? Compact structure, light-weight, and minimal setup area– especially in big diameters (DN200 and over), where it clearly beats Sphere Valves and Gateway Valves in cost-effectiveness. Securing can be soft (lined with rubber or PTFE) or tough (metal-to-metal). Soft-seated kinds are great for clean water at space temperature, while hard-seated variations take care of steam or gently abrasive media at higher temperatures.
The downsides? Also fully open, the disc remains in the flow course, creating obvious resistance. Plus, securing relies upon the elasticity of the seat or eccentric compression, so under high stress, it does not match the tightness of Round Valves or Gateway Valves. Triple-offset designs enhance securing efficiency considerably, however they likewise push the cost up.
Typical applications: water treatment plant inlet/outlet keys, cooling water recirculation systems, heating and cooling cooled water headers, and large-diameter air flow air ducts.
What Datang offers: wafer, lug, and flange link kinds; soft-seated variations with EPDM, NBR, or PTFE liners; hard-seated multi-layer steel designs; stress ratings from PN10 to PN40.
(Butterfly Valves)
1.3 Gateway Valves– The Traditional Favorite for Low-Resistance Shut-Off
A Gateway Valve runs by raising a gateway or wedge backwards and forwards within the body to obstruct or open up the circulation. Its standout attribute is the straight-through circulation path, which gives it the most affordable flow resistance among all valve kinds– making it the default choice for pipelines where stress drop is a major issue. That claimed, Gate Valves aren’t designed for frequent operation. The traveling is long, the activity is slow-moving, and each cycle puts on the sealing surface areas as eviction slides versus the seats.
Entrance Valves can be found in rising-stem and non-rising-stem arrangements. Rising-stem kinds allow you see the valve position at a glance, making them optimal for above-ground piping; non-rising-stem kinds save clearance and work well in buried or confined spaces. Wedge-type gateways create tighter seals as they close, handling high-temperature steam lines effortlessly, while parallel-slide entrances are better suited for low-pressure, large-diameter water systems.
Typical applications: power plant primary heavy steam lines, petroleum transmission block valves, wastewater plant inlet/outlet headers, and fire pump discharge lines.
What Datang supplies: cast steel and Stainless Steel rising-stem and non-rising-stem Gate Valves, wedge and parallel-slide layouts, with bevel gear or electric actuator alternatives for remote operation.
(Gate Valves)
1.4 Globe Valves– The Dependable Partner for Precise Throttling
A World Shutoff makes use of a disc that moves linearly along the seat centerline, changing the flow location to manage the media. The interior circulation course requires the media to change instructions, which produces high resistance and considerable pressure decrease– that’s the main drawback. Yet that exact same tortuous course gives the World Valve something its competitors can not match: superb strangling accuracy. And when completely shut, the disc and seat develop a self-tightening seal with remarkable reliability.
Globe Valves come in right, angle, and Y-pattern designs. The Y-pattern version angles the stem at 45 levels to the flow, lowering resistance and making it appropriate for constant policy. The disc account can be conical, needle-shaped, or allegorical, depending upon the flow attributes you need.
Regular applications: central heating boiler feedwater guideline, heavy steam desuperheating stations, chemical reactor feed control, and compressed air branch line throttling.
What Datang offers: T-pattern, angle, and Y-pattern World Valves, with disc faces hard-faced with cobalt-based alloys for wear resistance; manual handwheel, bevel equipment, or pneumatic diaphragm actuator options.
(Globe Valves)

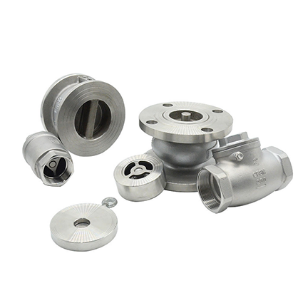

1.5 Check Valves– The Easy Security Obstacle
A Check Valve is completely automated– it opens up with onward circulation and nearby gravity or springtime pressure when flow reverses, protecting against heartburn. At pump discharges, compressor outlets, and parallel tools trains, Check Shutoffs are the necessary safety and security tool that secures costly machinery from reverse rotation or water hammer damages.
Swing-type Examine Shutoffs have a disc that rotates on a hinge pin, offering reduced circulation resistance and matching large-diameter straight or vertical lines. Lift-type Check Shutoffs direct the disc vertically along a guide port– they secure tighter yet have greater resistance, making them a far better suitable for small-diameter, high-pressure systems. Dual-plate Examine Valves include 2 semicircular discs that swing around a common pivot, shutting quickly with a portable footprint; they’re the fastest-growing key in oil, gas, and chemical tasks. Something to watch: quick closure can activate water hammer, so in high-lift pump stations, versions with dashpot dampers or slow-closing mechanisms are worth considering.
Typical applications: pump discharge anti-backflow, heavy steam catch systems, fire pump outlet lines, and chemical plant shot factors.
What Datang provides: swing-type, lift-type, and dual-plate Check Shutoffs, with counterweight or hydraulic dashpot choices for slow-moving closure; materials including Carbon Steel, Stainless-steel, and duplex steel.
(Check Valves)
1.6 Control Shutoffs– The Final Act in Process Automation
A Control Valve is the end-element in an automated control loop. It takes a signal from the controller, moves the actuator, and readjusts the valve plug setting to manage circulation, pressure, temperature level, or fluid level. The actual sophistication hinges on the flow particular curve (linear, equal-percentage, or quick-opening) and the valve’s capability to speak with the control system.
Common physique consist of straight single-seat, straight double-seat, cage-guided, and angle valves. Single-seat shutoffs supply low leakage yet can’t manage high differential pressure; double-seat valves endure greater pressure drops however leakage a lot more; cage-guided valves run quieter and manage vibration much better. With the increase of commercial IoT, wise positioners currently sustain HART, Profibus, and Modbus protocols, providing plant operators real-time responses and diagnostic data.
Regular applications: chemical reactor temperature control, power plant feedwater circulation policy, natural gas pressure-reducing terminals, and wastewater oygenation control.
What Datang offers: single-seat, double-seat, and cage-guided Control Valve bodies, with electrical or pneumatically-driven diaphragm actuators; trim materials adjustable for anti-cavitation and anti-erosion demands.
(Control Valves)

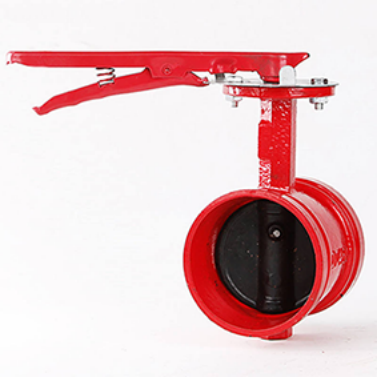

1.7 Fire Protection Valves– A Regulatory-Driven Necessity
Fire Protection Shutoffs are especially created for automatic sprinkler systems, fire hydrant networks, and fire pump assemblies. What sets them in addition to average shutoffs is the need for rapid activation under emergency situation conditions, well-founded reliability, and plainly specified stress setups. Typical kinds include fire-rated Entrance Shutoffs, fire-rated Butterfly Valves, deluge shutoffs, damp alarm system valves, and pressure-reducing shutoffs.
The choice logic below is various from commercial valves– it’s driven less by the media itself and even more by the system type (damp, dry, pre-action, or deluge) and the threat classification you’re safeguarding. Considering that these systems rest idle for long periods, interior leakage and corrosion-induced sticking are the primary failure dangers. That’s why rust-proofing, seal material aging cycles, and simplicity of regular screening become top priorities.
Common applications: high-rise lawn sprinkler risers, petrochemical plant fire loops, below ground energy tunnel fire zones, and storage tank ranch foam systems.
What Datang uses: fire-rated Entrance Valves and Butterfly Valves with internal and outside epoxy finish; alarm system valves complete with hamper chambers, water motor gongs, and stress buttons; fully compatible with Fire Combating Pipelines and Grooved Fittings for a full system solution.
(Fire Protection Valves)

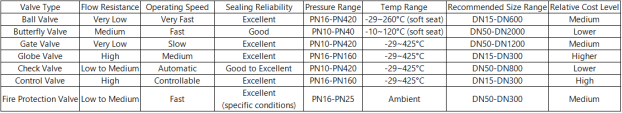

Quick Contrast Table– 7 Major Valve Categories at a Glance
(Major Valve Categories Comparison)
Note: The numbers over are basic sector referrals. Real efficiency depends on material option, sealing design, and producing accuracy.
2. Just How Pipeline Material Selection Works with Your Shutoff System
Once you have actually settled on the shutoff types, matching the piping product is the next vital step. Pipelines aren’t simply avenues– their inside surface coating directly affects how well your shutoffs seal, and their wall surface density determines the system’s stress border.

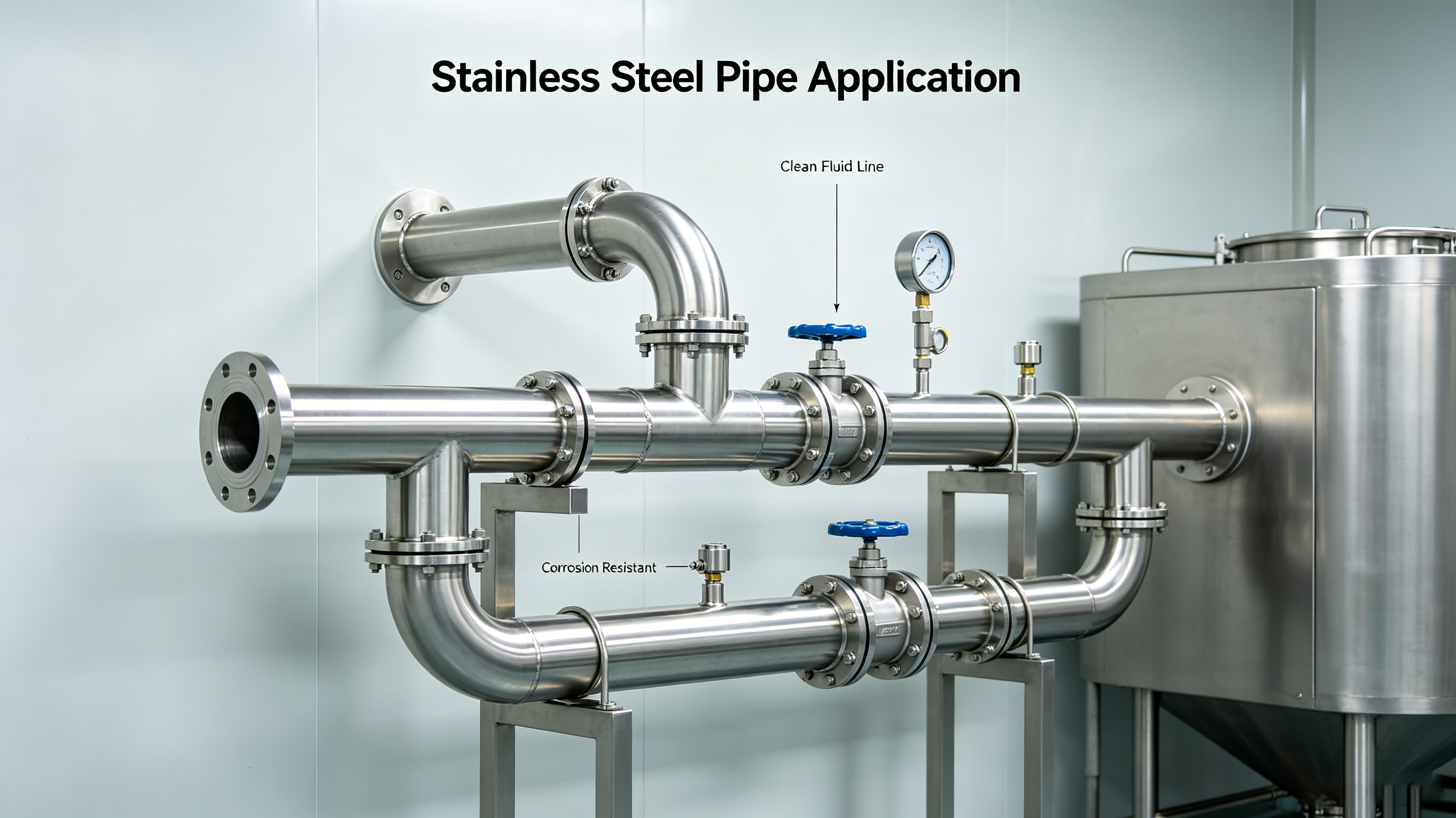

2.1 Stainless Steel Pipeline– The Go-To for Corrosive Services
Stainless Steel Pipeline offer excellent resistance to consistent rust and matching, making them a staple in chemical handling, food and pharmaceutical sanitary lines, and offshore applications. Austenitic grades like 304/304L and 316/316L are one of the most typical; 316L, with its molybdenum enhancement, handles chloride-bearing settings better than 304. When you’re running Stainless-steel Pipeline, the valve bodies and internal trim ought to additionally be stainless to prevent galvanic rust between dissimilar steels.
Bonded and flanged links are the two major selections for Stainless Steel Pipeline. Welding provides you a leak-tight, smooth bore, though it requires argon shielding on-site; flanged joints are simpler to uncouple for upkeep, but you need to ensure the gasket material is compatible with the media.
Common sectors: fine chemicals, drugs, bio-fermentation, salt water desalination, and food and beverage.
Datang’s approach: Stainless Steel Valves + Stainless Steel Piping + Stainless Steel Pipe Fittings– a totally integrated corrosion-resistant system that leaves no weak links.
2.2 Carbon Steel Water Lines– The Heavy Lifter for Power and Heavy Market
Carbon Steel Water lines combine high toughness with solid cost-effectiveness, making them the dominant selection in oil, gas, power generation, and area home heating. Typical criteria consist of ASTM A53, A106, and API 5L, covering different stress classes and low-temperature sturdiness needs. The major downside? Deterioration resistance is restricted. In wet environments or when carrying harsh liquids, you’ll need exterior coverings and internal liners for security.
When it pertains to attaching Carbon Steel Pipeline to valves, welding or butt-welding is the norm for high-pressure systems– joint toughness requires to match the moms and dad product. In tool- to low-pressure water and fire systems, flanged and grooved connections are much more typical. One point to watch: make certain the pressure course of your pipelines and valves match. If your pipe is rated Class 150 but your valve is Course 300, it’s excessive without including any kind of value; if the shutoff is lower-rated than the pipe, it comes to be the system’s weakest link.
Typical markets: long-distance oil/gas pipes, primary heating networks, industrial heavy steam lines, and compressed air headers.
Datang’s strategy: Carbon Steel Pipes and fittings ranked to the very same pressure courses (Course 150/300/600) as our shutoffs, with smooth and welded options readily available, covering all wall surface thicknesses per ASME B36.10.
( Pipe Application)
2.3 Fire Combating Pipelines– A Specialized Classification of Its Own
Fire Battling Pipes are primarily carbon steel or galvanized carbon steel, yet they follow their own set of criteria for deterioration security and stress testing. NFPA requirements typically call for inner galvanizing or epoxy covering to withstand internal corrosion from lasting water contact. Exterior coating relies on whether the pipeline is hidden, subjected inside your home, or installed outdoors.
Another essential difference: hydrostatic examination stress for Fire Fighting Pipes is generally 1.5 times the working pressure, held for a defined time to confirm system honesty. When Datang materials both Fire Protection Shutoffs and Fire Combating Pipelines, we can do a pre-shipment joint pressure test to confirm the entire system does as developed before it ever reaches your website.
Datang’s method: fire-rated Gate/Butterfly Valves + internally/externally layered Fire Fighting Pipelines + Grooved Fittings– a complete chain from pump area to lawn sprinkler heads, reducing purchase intricacy.

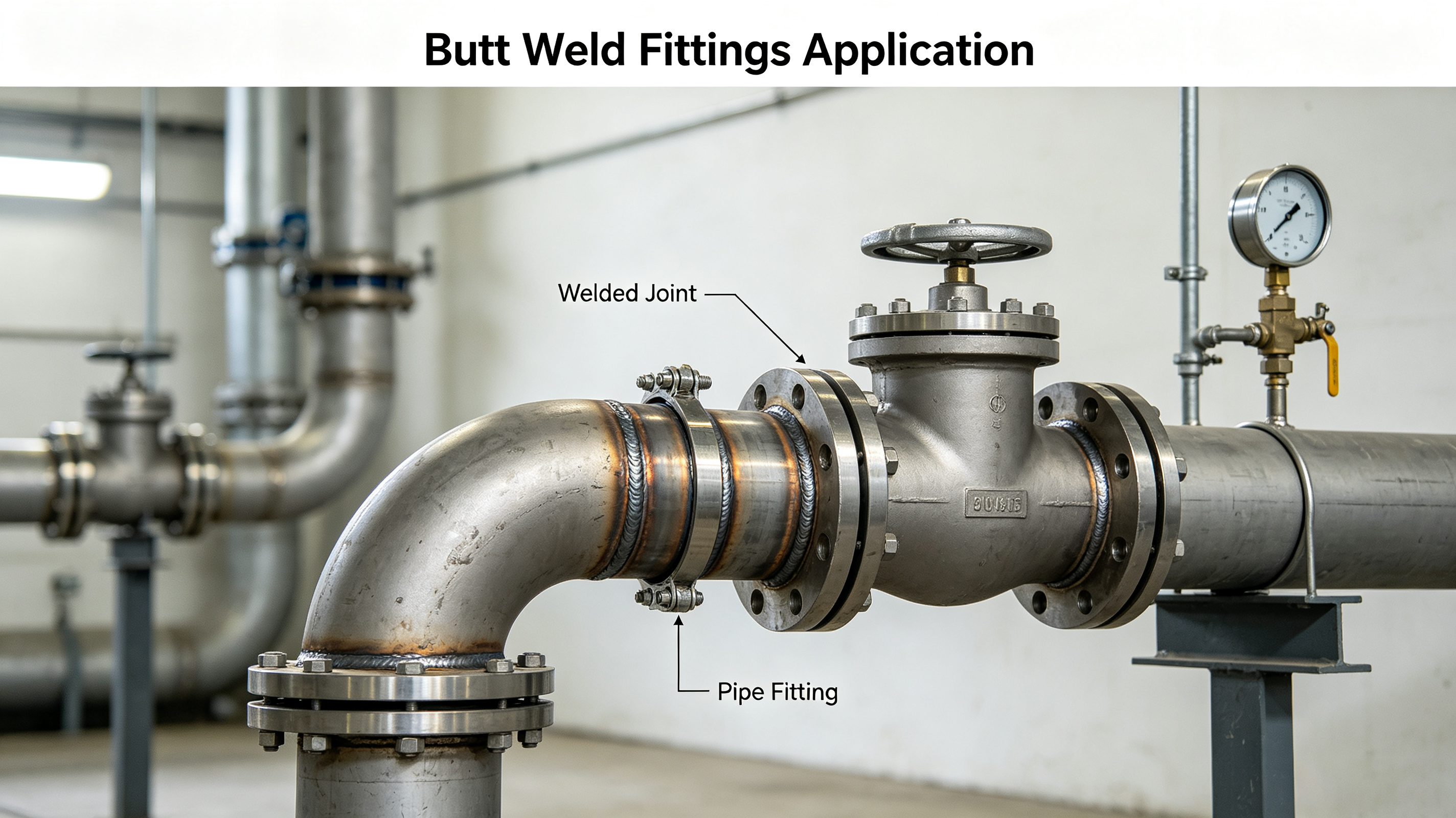

( Butt Weld Fittings Application Application)
3. A Glance at Pipeline Fittings Connection Approaches
A piping system isn’t simply valves and pipelines– you also require installations to transform direction, minimize or enlarge sizes, create branches, and link components. The right suitable choice can make or break your setup performance and long-lasting integrity.
â–ª Stainless Steel Pipe Fittings: consisting of elbow joints, tees, concentric/eccentric reducers, and caps– made from the exact same stainless qualities as the pipelines and signed up with by welding to keep corrosion resistance undamaged at the joints. Perfect for food, chemical, and sanitary systems.
â–ª Flanges: one of the most traditional bolted connection, supplying very easy disassembly and compatibility with a variety of shutoffs and equipment. Face kinds include RF (elevated face), FF (level face), and RTJ (ring-type joint)– gaskets require to match temperature and stress conditions. Datang products Flanges that are fully suitable with our valves and pipes (ANSI/DIN/JIS standards), so you do not run into bolt-hole imbalance or mismatched sealing faces during installment.
â–ª Grooved Fittings: these utilize a mechanical combining and a gasket to develop a fast, bolt-free link. After roll-grooving the pipe ends, you snap in the gasket and tighten up the coupling. This technique is a favorite in fire protection and water supply systems– setup is visibly faster than welding, and the joint permits some angular deflection, which offers it respectable seismic resistance. Quality control below concentrates on groove depth and width precision, plus the compression proportion layout of the rubber gasket.
â–ª Butt Weld Fittings: developed for extreme solutions– high temperature, high pressure, and thermal cycling– like nuclear power plant major steam headers and refinery heating unit inlets/outlets. Butt Weld Fittings match the wall surface density of the parent pipeline and usage full-penetration welds that develop joint toughness equivalent to the base material. Wall thickness choice and bevel preparation are crucial to weld top quality. Datang delivers these installations with appropriately machined bevels and finish caps for security, prepared for area fit-up and welding.

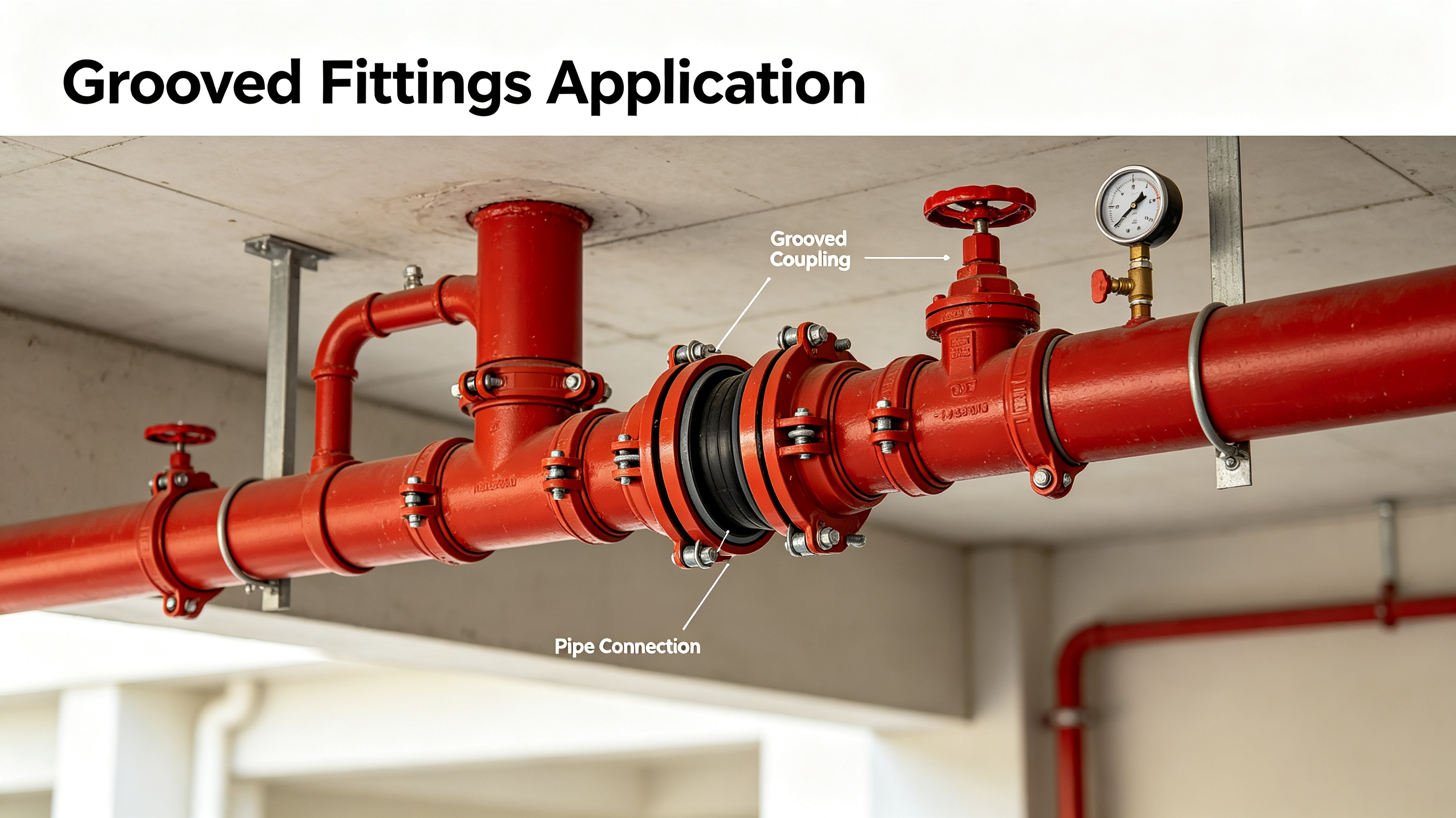

( Grooved Fittings Application Application)
Bringing everything with each other: an industrial piping system is even more than just a stack of shutoff products. Whether you’re considering the fast shut-off of a Sphere Valve versus the reduced resistance of a Gate Valve, making a decision in between the throttling accuracy of a World Valve and the automated knowledge of a Control Valve, or meeting the conformity needs of Fire Protection Valves– every group has its own pleasant spot. And the pipes and installations that link them with each other are just as important. Picking the best products and connection approaches guarantees your valves can actually supply the efficiency you’re depending on.
Datang, running with our very own independent web site, brings shutoffs, pipelines, and fittings into one unified product portfolio, giving procurement teams a simpler, more regular way to source complete systems. There’s no universal “finest”– just the appropriate suitable for your media, pressure, temperature level, running frequency, and installment restrictions. That’s the logic that brings about systems that are both risk-free and cost-efficient in the future.
