1. Product Principles and Microstructural Layout
1.1 Composition and Crystallographic Stability of Alumina

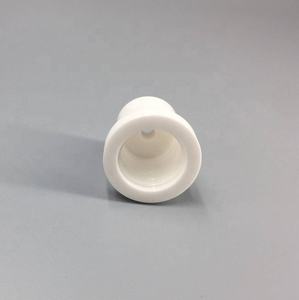

(Alumina Ceramic Nozzles)
Alumina (Al ₂ O SIX), specifically in its alpha phase, is a fully oxidized ceramic with a corundum-type hexagonal close-packed framework, using outstanding thermal security, chemical inertness, and mechanical strength at elevated temperatures.
High-purity alumina (normally 95– 99.9% Al ₂ O THREE) is preferred for nozzle applications because of its marginal contamination web content, which minimizes grain border weakening and enhances resistance to thermal and chemical degradation.
The microstructure, including fine, equiaxed grains, is crafted during sintering to decrease porosity and take full advantage of thickness, directly influencing the nozzle’s erosion resistance and structural honesty under high-velocity liquid flow.
Ingredients such as MgO are usually introduced in trace total up to inhibit uncommon grain growth throughout sintering, making certain an uniform microstructure that sustains lasting reliability.
1.2 Mechanical and Thermal Properties Relevant to Nozzle Performance
Alumina porcelains show a Vickers solidity going beyond 1800 HV, making them extremely immune to rough wear from particulate-laden fluids, a critical quality in applications such as sandblasting and abrasive waterjet cutting.
With a flexural toughness of 300– 500 MPa and a compressive stamina over 2 Grade point average, alumina nozzles keep dimensional security under high-pressure operation, generally varying from 100 to 400 MPa in industrial systems.
Thermally, alumina keeps its mechanical homes as much as 1600 ° C, with a reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) that supplies outstanding resistance to thermal shock– essential when subjected to fast temperature level variations during start-up or closure cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without causing thermal slopes that can result in breaking, balancing insulation and warmth administration demands.
2. Manufacturing Processes and Geometric Accuracy
2.1 Forming and Sintering Methods for Nozzle Fabrication
The production of alumina ceramic nozzles begins with high-purity alumina powder, which is processed into a green body making use of methods such as chilly isostatic pressing (CIP), shot molding, or extrusion, depending on the preferred geometry and batch dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pressing applies consistent pressure from all directions, yielding an uniform density distribution critical for reducing issues throughout sintering.
Injection molding is utilized for complicated nozzle forms with internal tapers and great orifices, permitting high dimensional precision and reproducibility in automation.
After shaping, the environment-friendly compacts go through a two-stage thermal therapy: debinding to get rid of organic binders and sintering at temperatures between 1500 ° C and 1650 ° C to attain near-theoretical density via solid-state diffusion.
Specific control of sintering ambience and heating/cooling prices is essential to avoid bending, cracking, or grain coarsening that might endanger nozzle performance.
2.2 Machining, Sprucing Up, and Quality Control
Post-sintering, alumina nozzles usually call for precision machining to accomplish limited resistances, specifically in the orifice region where circulation dynamics are most conscious surface finish and geometry.
Ruby grinding and lapping are made use of to fine-tune inner and outside surfaces, accomplishing surface area roughness values listed below 0.1 µm, which reduces flow resistance and stops bit build-up.
The orifice, typically varying from 0.3 to 3.0 mm in diameter, should be devoid of micro-cracks and chamfers to make sure laminar flow and regular spray patterns.
Non-destructive screening methods such as optical microscopy, X-ray examination, and pressure cycling tests are employed to verify architectural integrity and efficiency uniformity prior to release.
Customized geometries, including convergent-divergent (de Laval) profiles for supersonic circulation or multi-hole arrays for fan spray patterns, are progressively made making use of innovative tooling and computer-aided layout (CAD)-driven production.
3. Functional Benefits Over Alternate Nozzle Products
3.1 Superior Erosion and Deterioration Resistance
Compared to metal (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina shows far higher resistance to rough wear, particularly in settings entailing silica sand, garnet, or other hard abrasives made use of in surface prep work and cutting.
Steel nozzles break down rapidly due to micro-fracturing and plastic deformation, needing frequent substitute, whereas alumina nozzles can last 3– 5 times longer, considerably decreasing downtime and functional prices.
Additionally, alumina is inert to a lot of acids, alkalis, and solvents, making it ideal for chemical spraying, etching, and cleansing processes where metal components would certainly wear away or contaminate the fluid.
This chemical security is especially useful in semiconductor production, pharmaceutical processing, and food-grade applications requiring high purity.
3.2 Thermal and Electric Insulation Properties
Alumina’s high electric resistivity (> 10 ¹⁴ Ω · centimeters) makes it excellent for usage in electrostatic spray layer systems, where it prevents cost leak and ensures consistent paint atomization.
Its thermal insulation capacity permits secure operation in high-temperature spraying atmospheres, such as fire spraying or thermal cleaning, without warmth transfer to surrounding parts.
Unlike metals, alumina does not catalyze unwanted chemical reactions in responsive liquid streams, maintaining the integrity of delicate formulas.
4. Industrial Applications and Technical Effect
4.1 Duties in Abrasive Jet Machining and Surface Therapy
Alumina ceramic nozzles are vital in abrasive blowing up systems for corrosion elimination, paint stripping, and surface texturing in vehicle, aerospace, and building industries.
Their capability to maintain a regular orifice size over expanded usage makes sure consistent rough speed and impact angle, straight affecting surface area coating high quality and procedure repeatability.
In abrasive waterjet cutting, alumina concentrating tubes guide the high-pressure water-abrasive blend, holding up against erosive pressures that would swiftly degrade softer materials.
4.2 Usage in Additive Production, Spray Finishing, and Liquid Control
In thermal spray systems, such as plasma and flame splashing, alumina nozzles direct high-temperature gas flows and liquified bits onto substratums, gaining from their thermal shock resistance and dimensional security.
They are likewise used in accuracy spray nozzles for agricultural chemicals, inkjet systems, and gas atomization, where wear resistance makes sure lasting application precision.
In 3D printing, specifically in binder jetting and product extrusion, alumina nozzles supply great powders or thick pastes with marginal obstructing or put on.
Emerging applications consist of microfluidic systems and lab-on-a-chip devices, where miniaturized alumina components use longevity and biocompatibility.
In recap, alumina ceramic nozzles represent an essential intersection of products science and industrial engineering.
Their extraordinary mix of solidity, thermal stability, and chemical resistance makes it possible for trustworthy efficiency in several of one of the most demanding liquid handling settings.
As industrial procedures push toward higher stress, finer tolerances, and longer service periods, alumina ceramics continue to set the criterion for long lasting, high-precision circulation control elements.
