1. The Science and Framework of Alumina Porcelain Products
1.1 Crystallography and Compositional Variants of Aluminum Oxide

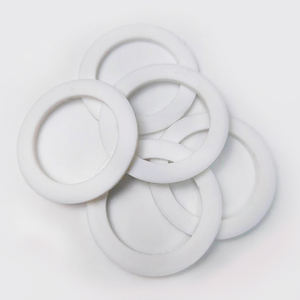

(Alumina Ceramics Rings)
Alumina ceramic rings are produced from light weight aluminum oxide (Al two O ₃), a compound renowned for its exceptional equilibrium of mechanical strength, thermal security, and electric insulation.
The most thermodynamically stable and industrially relevant stage of alumina is the alpha (α) stage, which crystallizes in a hexagonal close-packed (HCP) framework coming from the corundum family.
In this setup, oxygen ions develop a dense latticework with aluminum ions occupying two-thirds of the octahedral interstitial sites, leading to a highly steady and robust atomic structure.
While pure alumina is in theory 100% Al Two O THREE, industrial-grade products often include little percentages of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y ₂ O FIVE) to manage grain development during sintering and improve densification.
Alumina ceramics are identified by pureness degrees: 96%, 99%, and 99.8% Al Two O three prevail, with higher purity correlating to improved mechanical residential properties, thermal conductivity, and chemical resistance.
The microstructure– particularly grain size, porosity, and stage distribution– plays a critical function in determining the final performance of alumina rings in service settings.
1.2 Trick Physical and Mechanical Quality
Alumina ceramic rings display a suite of residential or commercial properties that make them essential popular commercial setups.
They have high compressive toughness (as much as 3000 MPa), flexural stamina (generally 350– 500 MPa), and superb solidity (1500– 2000 HV), enabling resistance to put on, abrasion, and contortion under load.
Their low coefficient of thermal expansion (approximately 7– 8 × 10 ⁻⁶/ K) ensures dimensional security throughout wide temperature level arrays, reducing thermal tension and cracking during thermal biking.
Thermal conductivity arrays from 20 to 30 W/m · K, depending upon pureness, enabling modest warmth dissipation– sufficient for several high-temperature applications without the demand for energetic air conditioning.

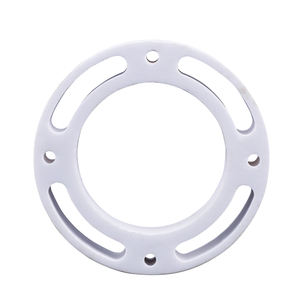

( Alumina Ceramics Ring)
Electrically, alumina is an impressive insulator with a quantity resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric toughness of around 10– 15 kV/mm, making it excellent for high-voltage insulation parts.
Furthermore, alumina demonstrates exceptional resistance to chemical strike from acids, antacid, and molten metals, although it is vulnerable to assault by strong alkalis and hydrofluoric acid at elevated temperatures.
2. Manufacturing and Precision Design of Alumina Bands
2.1 Powder Processing and Forming Strategies
The production of high-performance alumina ceramic rings begins with the choice and preparation of high-purity alumina powder.
Powders are typically manufactured by means of calcination of aluminum hydroxide or with advanced techniques like sol-gel processing to achieve great fragment size and slim dimension distribution.
To develop the ring geometry, numerous shaping methods are used, consisting of:
Uniaxial pushing: where powder is compressed in a die under high pressure to create a “green” ring.
Isostatic pushing: using uniform pressure from all instructions making use of a fluid medium, causing greater thickness and even more uniform microstructure, particularly for complex or big rings.
Extrusion: suitable for long cylindrical forms that are later reduced right into rings, typically made use of for lower-precision applications.
Injection molding: used for complex geometries and limited tolerances, where alumina powder is blended with a polymer binder and injected into a mold and mildew.
Each technique influences the last density, grain positioning, and defect circulation, necessitating mindful process option based upon application requirements.
2.2 Sintering and Microstructural Development
After forming, the green rings undertake high-temperature sintering, commonly between 1500 ° C and 1700 ° C in air or managed atmospheres.
During sintering, diffusion systems drive bit coalescence, pore removal, and grain growth, leading to a totally thick ceramic body.
The price of home heating, holding time, and cooling down account are specifically regulated to prevent cracking, bending, or overstated grain growth.
Ingredients such as MgO are usually introduced to hinder grain boundary movement, resulting in a fine-grained microstructure that boosts mechanical strength and dependability.
Post-sintering, alumina rings may undergo grinding and lapping to attain tight dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface finishes (Ra < 0.1 µm), important for sealing, bearing, and electric insulation applications.
3. Useful Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are extensively used in mechanical systems due to their wear resistance and dimensional stability.
Trick applications include:
Securing rings in pumps and valves, where they withstand erosion from unpleasant slurries and harsh fluids in chemical processing and oil & gas markets.
Bearing parts in high-speed or destructive settings where metal bearings would certainly break down or call for frequent lubrication.
Overview rings and bushings in automation devices, using reduced friction and long life span without the demand for greasing.
Put on rings in compressors and turbines, lessening clearance between turning and fixed components under high-pressure problems.
Their capacity to keep performance in dry or chemically hostile settings makes them above several metallic and polymer options.
3.2 Thermal and Electric Insulation Roles
In high-temperature and high-voltage systems, alumina rings serve as vital protecting parts.
They are utilized as:
Insulators in burner and heating system parts, where they sustain repellent cables while holding up against temperature levels above 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, preventing electrical arcing while maintaining hermetic seals.
Spacers and assistance rings in power electronic devices and switchgear, isolating conductive components in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave tools, where their reduced dielectric loss and high break down strength make certain signal stability.
The combination of high dielectric toughness and thermal stability allows alumina rings to function accurately in settings where organic insulators would certainly degrade.
4. Material Advancements and Future Overview
4.1 Composite and Doped Alumina Solutions
To additionally improve efficiency, researchers and makers are creating sophisticated alumina-based composites.
Examples include:
Alumina-zirconia (Al ₂ O TWO-ZrO TWO) compounds, which show improved crack sturdiness with change toughening devices.
Alumina-silicon carbide (Al ₂ O TWO-SiC) nanocomposites, where nano-sized SiC fragments enhance solidity, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can change grain border chemistry to improve high-temperature toughness and oxidation resistance.
These hybrid products extend the functional envelope of alumina rings into even more severe problems, such as high-stress vibrant loading or rapid thermal cycling.
4.2 Emerging Fads and Technological Integration
The future of alumina ceramic rings depends on smart integration and precision production.
Patterns consist of:
Additive manufacturing (3D printing) of alumina elements, enabling complex internal geometries and customized ring styles previously unachievable via standard approaches.
Practical grading, where structure or microstructure differs throughout the ring to maximize performance in various areas (e.g., wear-resistant external layer with thermally conductive core).
In-situ monitoring by means of ingrained sensing units in ceramic rings for predictive maintenance in commercial machinery.
Raised usage in renewable resource systems, such as high-temperature fuel cells and concentrated solar power plants, where product integrity under thermal and chemical tension is extremely important.
As markets demand higher effectiveness, longer life expectancies, and minimized maintenance, alumina ceramic rings will certainly continue to play a critical role in making it possible for next-generation design remedies.
