1. Material Principles and Crystallographic Properties
1.1 Stage Make-up and Polymorphic Habits

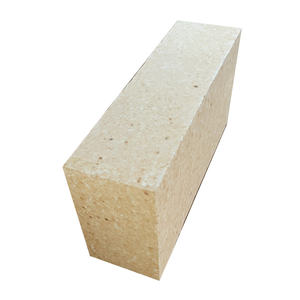

(Alumina Ceramic Blocks)
Alumina (Al Two O THREE), especially in its α-phase form, is one of the most widely utilized technical porcelains as a result of its exceptional balance of mechanical stamina, chemical inertness, and thermal stability.
While light weight aluminum oxide exists in numerous metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically secure crystalline structure at heats, identified by a dense hexagonal close-packed (HCP) setup of oxygen ions with light weight aluminum cations inhabiting two-thirds of the octahedral interstitial sites.
This ordered structure, known as diamond, provides high latticework energy and solid ionic-covalent bonding, causing a melting factor of approximately 2054 ° C and resistance to phase transformation under extreme thermal problems.
The transition from transitional aluminas to α-Al two O six usually occurs over 1100 ° C and is accompanied by significant volume contraction and loss of surface area, making stage control vital throughout sintering.
High-purity α-alumina blocks (> 99.5% Al Two O ₃) exhibit remarkable performance in severe settings, while lower-grade structures (90– 95%) might consist of second phases such as mullite or glazed grain limit stages for economical applications.
1.2 Microstructure and Mechanical Stability
The efficiency of alumina ceramic blocks is greatly influenced by microstructural functions consisting of grain size, porosity, and grain boundary communication.
Fine-grained microstructures (grain size < 5 µm) normally offer higher flexural toughness (as much as 400 MPa) and enhanced fracture sturdiness compared to grainy equivalents, as smaller sized grains impede crack propagation.
Porosity, also at reduced degrees (1– 5%), significantly lowers mechanical toughness and thermal conductivity, demanding full densification with pressure-assisted sintering techniques such as hot pushing or hot isostatic pushing (HIP).
Ingredients like MgO are commonly presented in trace quantities (≈ 0.1 wt%) to hinder abnormal grain growth throughout sintering, making certain uniform microstructure and dimensional stability.
The resulting ceramic blocks exhibit high solidity (≈ 1800 HV), excellent wear resistance, and low creep prices at elevated temperatures, making them ideal for load-bearing and unpleasant environments.
2. Production and Handling Techniques

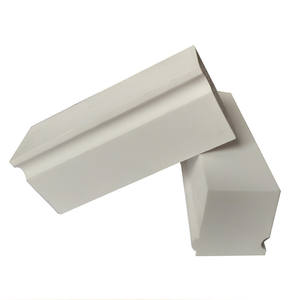

( Alumina Ceramic Blocks)
2.1 Powder Preparation and Shaping Methods
The production of alumina ceramic blocks begins with high-purity alumina powders stemmed from calcined bauxite through the Bayer process or synthesized via rainfall or sol-gel paths for greater purity.
Powders are grated to attain slim bit size circulation, boosting packaging thickness and sinterability.
Forming right into near-net geometries is accomplished with numerous developing techniques: uniaxial pressing for basic blocks, isostatic pushing for consistent density in intricate forms, extrusion for lengthy areas, and slip casting for intricate or big components.
Each technique affects green body density and homogeneity, which directly impact final residential properties after sintering.
For high-performance applications, progressed forming such as tape casting or gel-casting may be employed to achieve exceptional dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperature levels in between 1600 ° C and 1750 ° C allows diffusion-driven densification, where bit necks grow and pores diminish, resulting in a fully dense ceramic body.
Atmosphere control and exact thermal profiles are essential to stop bloating, bending, or differential shrinking.
Post-sintering operations consist of diamond grinding, splashing, and polishing to achieve limited tolerances and smooth surface coatings needed in sealing, sliding, or optical applications.
Laser cutting and waterjet machining permit accurate modification of block geometry without inducing thermal stress.
Surface area therapies such as alumina layer or plasma spraying can even more improve wear or rust resistance in specific service conditions.
3. Practical Characteristics and Efficiency Metrics
3.1 Thermal and Electric Behavior
Alumina ceramic blocks exhibit modest thermal conductivity (20– 35 W/(m · K)), significantly more than polymers and glasses, allowing reliable warm dissipation in electronic and thermal management systems.
They preserve structural integrity up to 1600 ° C in oxidizing ambiences, with low thermal expansion (≈ 8 ppm/K), adding to exceptional thermal shock resistance when correctly developed.
Their high electrical resistivity (> 10 ¹⁴ Ω · centimeters) and dielectric stamina (> 15 kV/mm) make them ideal electrical insulators in high-voltage environments, including power transmission, switchgear, and vacuum cleaner systems.
Dielectric consistent (εᵣ ≈ 9– 10) stays stable over a vast frequency array, supporting usage in RF and microwave applications.
These homes enable alumina blocks to work reliably in environments where organic products would deteriorate or fail.
3.2 Chemical and Environmental Resilience
One of the most beneficial features of alumina blocks is their extraordinary resistance to chemical assault.
They are highly inert to acids (other than hydrofluoric and warm phosphoric acids), alkalis (with some solubility in strong caustics at raised temperatures), and molten salts, making them suitable for chemical handling, semiconductor manufacture, and air pollution control equipment.
Their non-wetting habits with several liquified steels and slags enables usage in crucibles, thermocouple sheaths, and heater cellular linings.
In addition, alumina is non-toxic, biocompatible, and radiation-resistant, broadening its energy into medical implants, nuclear securing, and aerospace parts.
Marginal outgassing in vacuum cleaner settings better qualifies it for ultra-high vacuum cleaner (UHV) systems in research study and semiconductor manufacturing.
4. Industrial Applications and Technological Combination
4.1 Architectural and Wear-Resistant Parts
Alumina ceramic blocks serve as vital wear elements in industries varying from mining to paper manufacturing.
They are used as liners in chutes, receptacles, and cyclones to resist abrasion from slurries, powders, and granular products, considerably expanding service life compared to steel.
In mechanical seals and bearings, alumina blocks offer reduced friction, high solidity, and rust resistance, minimizing maintenance and downtime.
Custom-shaped blocks are incorporated right into reducing tools, dies, and nozzles where dimensional stability and side retention are critical.
Their light-weight nature (thickness ≈ 3.9 g/cm THREE) additionally contributes to energy financial savings in moving parts.
4.2 Advanced Design and Emerging Makes Use Of
Beyond typical roles, alumina blocks are increasingly employed in sophisticated technical systems.
In electronics, they work as insulating substratums, heat sinks, and laser dental caries parts as a result of their thermal and dielectric properties.
In energy systems, they serve as solid oxide fuel cell (SOFC) elements, battery separators, and blend activator plasma-facing materials.
Additive production of alumina through binder jetting or stereolithography is emerging, allowing intricate geometries formerly unattainable with conventional forming.
Crossbreed frameworks combining alumina with metals or polymers with brazing or co-firing are being established for multifunctional systems in aerospace and protection.
As material scientific research advances, alumina ceramic blocks continue to evolve from easy structural components into active parts in high-performance, sustainable engineering remedies.
In summary, alumina ceramic blocks stand for a foundational course of advanced ceramics, integrating durable mechanical efficiency with phenomenal chemical and thermal stability.
Their flexibility across industrial, digital, and clinical domain names underscores their long-lasting value in contemporary engineering and technology growth.
