1. Product Principles and Morphological Advantages
1.1 Crystal Structure and Chemical Make-up

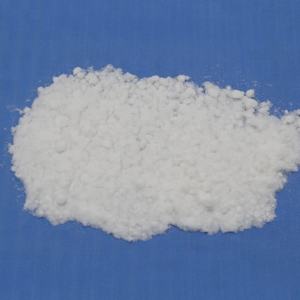

(Spherical alumina)
Spherical alumina, or spherical aluminum oxide (Al ₂ O THREE), is an artificially produced ceramic material defined by a well-defined globular morphology and a crystalline structure mostly in the alpha (α) stage.
Alpha-alumina, the most thermodynamically steady polymorph, includes a hexagonal close-packed setup of oxygen ions with aluminum ions inhabiting two-thirds of the octahedral interstices, leading to high latticework power and exceptional chemical inertness.
This stage shows exceptional thermal security, preserving honesty as much as 1800 ° C, and withstands response with acids, antacid, and molten steels under the majority of commercial conditions.
Unlike uneven or angular alumina powders derived from bauxite calcination, spherical alumina is crafted with high-temperature processes such as plasma spheroidization or flame synthesis to achieve consistent satiation and smooth surface area texture.
The transformation from angular precursor particles– typically calcined bauxite or gibbsite– to dense, isotropic rounds eliminates sharp sides and interior porosity, boosting packaging efficiency and mechanical sturdiness.
High-purity qualities (≥ 99.5% Al ₂ O FOUR) are crucial for digital and semiconductor applications where ionic contamination must be reduced.
1.2 Bit Geometry and Packing Habits
The defining function of round alumina is its near-perfect sphericity, commonly quantified by a sphericity index > 0.9, which dramatically affects its flowability and packaging thickness in composite systems.
In contrast to angular fragments that interlock and produce voids, round particles roll past one another with very little rubbing, allowing high solids packing during formula of thermal interface materials (TIMs), encapsulants, and potting compounds.
This geometric harmony enables maximum theoretical packing densities surpassing 70 vol%, far exceeding the 50– 60 vol% normal of irregular fillers.
Higher filler packing directly equates to enhanced thermal conductivity in polymer matrices, as the constant ceramic network gives effective phonon transport pathways.
Furthermore, the smooth surface lowers endure handling devices and reduces thickness increase during blending, enhancing processability and dispersion security.
The isotropic nature of rounds likewise stops orientation-dependent anisotropy in thermal and mechanical homes, ensuring consistent efficiency in all instructions.
2. Synthesis Methods and Quality Control
2.1 High-Temperature Spheroidization Methods
The manufacturing of round alumina mainly depends on thermal approaches that thaw angular alumina bits and permit surface area stress to improve them into balls.

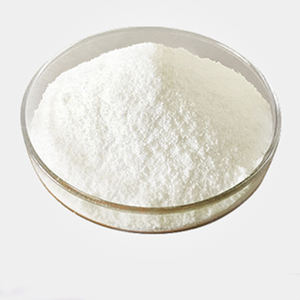

( Spherical alumina)
Plasma spheroidization is the most commonly made use of commercial method, where alumina powder is injected right into a high-temperature plasma flame (as much as 10,000 K), triggering instantaneous melting and surface tension-driven densification into excellent rounds.
The liquified beads strengthen rapidly during trip, developing dense, non-porous bits with uniform dimension circulation when paired with accurate classification.
Alternate techniques include fire spheroidization utilizing oxy-fuel torches and microwave-assisted home heating, though these generally use lower throughput or less control over fragment dimension.
The starting product’s pureness and particle dimension circulation are important; submicron or micron-scale precursors generate similarly sized balls after handling.
Post-synthesis, the item undergoes extensive sieving, electrostatic splitting up, and laser diffraction evaluation to guarantee limited particle size distribution (PSD), typically varying from 1 to 50 µm depending on application.
2.2 Surface Adjustment and Functional Tailoring
To improve compatibility with organic matrices such as silicones, epoxies, and polyurethanes, round alumina is commonly surface-treated with combining representatives.
Silane combining agents– such as amino, epoxy, or plastic functional silanes– form covalent bonds with hydroxyl groups on the alumina surface area while providing organic functionality that communicates with the polymer matrix.
This therapy enhances interfacial bond, minimizes filler-matrix thermal resistance, and stops agglomeration, leading to even more homogeneous compounds with remarkable mechanical and thermal performance.
Surface area finishings can likewise be engineered to pass on hydrophobicity, enhance dispersion in nonpolar resins, or enable stimuli-responsive behavior in smart thermal products.
Quality control consists of measurements of BET surface area, faucet density, thermal conductivity (generally 25– 35 W/(m · K )for dense α-alumina), and contamination profiling via ICP-MS to leave out Fe, Na, and K at ppm levels.
Batch-to-batch consistency is vital for high-reliability applications in electronic devices and aerospace.
3. Thermal and Mechanical Efficiency in Composites
3.1 Thermal Conductivity and Interface Engineering
Round alumina is primarily utilized as a high-performance filler to improve the thermal conductivity of polymer-based products utilized in digital packaging, LED lighting, and power components.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), filling with 60– 70 vol% round alumina can boost this to 2– 5 W/(m · K), sufficient for effective warm dissipation in small devices.
The high intrinsic thermal conductivity of α-alumina, combined with minimal phonon scattering at smooth particle-particle and particle-matrix user interfaces, allows efficient heat transfer through percolation networks.
Interfacial thermal resistance (Kapitza resistance) stays a restricting element, but surface functionalization and enhanced diffusion techniques help reduce this barrier.
In thermal user interface materials (TIMs), round alumina reduces call resistance in between heat-generating parts (e.g., CPUs, IGBTs) and heat sinks, avoiding overheating and extending device life expectancy.
Its electrical insulation (resistivity > 10 ¹² Ω · centimeters) makes sure security in high-voltage applications, differentiating it from conductive fillers like metal or graphite.
3.2 Mechanical Stability and Reliability
Beyond thermal efficiency, round alumina enhances the mechanical toughness of composites by increasing solidity, modulus, and dimensional security.
The round form distributes stress and anxiety uniformly, reducing fracture initiation and propagation under thermal cycling or mechanical load.
This is especially crucial in underfill products and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal development (CTE) mismatch can generate delamination.
By readjusting filler loading and bit dimension circulation (e.g., bimodal blends), the CTE of the compound can be tuned to match that of silicon or published circuit boards, decreasing thermo-mechanical stress and anxiety.
Additionally, the chemical inertness of alumina protects against destruction in humid or corrosive settings, ensuring long-term dependability in automotive, commercial, and exterior electronics.
4. Applications and Technological Advancement
4.1 Electronic Devices and Electric Car Equipments
Spherical alumina is an essential enabler in the thermal monitoring of high-power electronics, including insulated gate bipolar transistors (IGBTs), power materials, and battery management systems in electric automobiles (EVs).
In EV battery packs, it is incorporated into potting substances and phase adjustment materials to stop thermal runaway by uniformly distributing warmth throughout cells.
LED suppliers utilize it in encapsulants and second optics to keep lumen result and color consistency by minimizing junction temperature.
In 5G infrastructure and information centers, where warmth change densities are increasing, spherical alumina-filled TIMs make sure stable operation of high-frequency chips and laser diodes.
Its function is increasing into sophisticated packaging modern technologies such as fan-out wafer-level product packaging (FOWLP) and embedded die systems.
4.2 Arising Frontiers and Lasting Development
Future advancements focus on hybrid filler systems integrating round alumina with boron nitride, light weight aluminum nitride, or graphene to attain collaborating thermal efficiency while maintaining electrical insulation.
Nano-spherical alumina (sub-100 nm) is being discovered for transparent ceramics, UV finishes, and biomedical applications, though difficulties in dispersion and expense continue to be.
Additive manufacturing of thermally conductive polymer compounds utilizing spherical alumina allows complicated, topology-optimized warmth dissipation frameworks.
Sustainability efforts include energy-efficient spheroidization procedures, recycling of off-spec material, and life-cycle analysis to minimize the carbon impact of high-performance thermal products.
In recap, spherical alumina stands for a crucial crafted material at the crossway of ceramics, composites, and thermal science.
Its one-of-a-kind combination of morphology, pureness, and performance makes it indispensable in the continuous miniaturization and power aggravation of modern-day electronic and power systems.
