1. Essential Make-up and Structural Features of Quartz Ceramics
1.1 Chemical Purity and Crystalline-to-Amorphous Shift

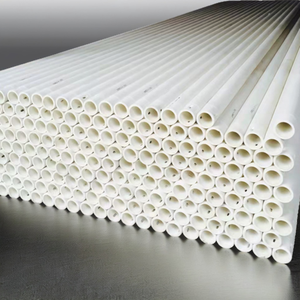

(Quartz Ceramics)
Quartz ceramics, also known as fused silica or fused quartz, are a class of high-performance inorganic materials derived from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) kind.
Unlike standard ceramics that rely upon polycrystalline frameworks, quartz porcelains are identified by their total absence of grain boundaries because of their glazed, isotropic network of SiO ₄ tetrahedra adjoined in a three-dimensional random network.
This amorphous framework is attained with high-temperature melting of all-natural quartz crystals or artificial silica precursors, complied with by rapid cooling to prevent condensation.
The resulting product contains commonly over 99.9% SiO ₂, with trace impurities such as alkali steels (Na ⁺, K ⁺), light weight aluminum, and iron kept at parts-per-million levels to maintain optical clearness, electric resistivity, and thermal efficiency.
The lack of long-range order eliminates anisotropic behavior, making quartz porcelains dimensionally steady and mechanically consistent in all instructions– an important benefit in accuracy applications.
1.2 Thermal Behavior and Resistance to Thermal Shock
One of one of the most specifying features of quartz porcelains is their exceptionally reduced coefficient of thermal expansion (CTE), generally around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero expansion develops from the versatile Si– O– Si bond angles in the amorphous network, which can readjust under thermal tension without damaging, enabling the product to withstand quick temperature adjustments that would certainly fracture conventional ceramics or metals.
Quartz ceramics can endure thermal shocks exceeding 1000 ° C, such as direct immersion in water after heating to red-hot temperature levels, without fracturing or spalling.
This residential or commercial property makes them vital in atmospheres entailing repeated heating and cooling down cycles, such as semiconductor handling heating systems, aerospace components, and high-intensity lights systems.
Furthermore, quartz ceramics preserve architectural stability as much as temperature levels of approximately 1100 ° C in continual service, with short-term exposure resistance coming close to 1600 ° C in inert ambiences.
( Quartz Ceramics)
Beyond thermal shock resistance, they exhibit high softening temperatures (~ 1600 ° C )and exceptional resistance to devitrification– though extended direct exposure over 1200 ° C can launch surface area condensation into cristobalite, which may endanger mechanical toughness due to quantity changes during stage transitions.
2. Optical, Electric, and Chemical Properties of Fused Silica Solution
2.1 Broadband Transparency and Photonic Applications
Quartz ceramics are renowned for their outstanding optical transmission throughout a broad spectral variety, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This openness is made it possible for by the lack of contaminations and the homogeneity of the amorphous network, which lessens light spreading and absorption.
High-purity synthetic integrated silica, generated via flame hydrolysis of silicon chlorides, achieves even higher UV transmission and is utilized in crucial applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The product’s high laser damage limit– standing up to break down under extreme pulsed laser irradiation– makes it optimal for high-energy laser systems used in fusion study and industrial machining.
Moreover, its reduced autofluorescence and radiation resistance make sure reliability in scientific instrumentation, including spectrometers, UV treating systems, and nuclear monitoring gadgets.
2.2 Dielectric Performance and Chemical Inertness
From an electric standpoint, quartz ceramics are exceptional insulators with quantity resistivity going beyond 10 ¹⁸ Ω · cm at area temperature and a dielectric constant of around 3.8 at 1 MHz.
Their low dielectric loss tangent (tan δ < 0.0001) makes certain minimal energy dissipation in high-frequency and high-voltage applications, making them ideal for microwave home windows, radar domes, and shielding substrates in electronic settings up.
These residential or commercial properties remain secure over a broad temperature range, unlike numerous polymers or conventional ceramics that break down electrically under thermal stress and anxiety.
Chemically, quartz porcelains exhibit remarkable inertness to many acids, including hydrochloric, nitric, and sulfuric acids, due to the security of the Si– O bond.
Nonetheless, they are susceptible to strike by hydrofluoric acid (HF) and strong antacids such as warm sodium hydroxide, which damage the Si– O– Si network.
This selective reactivity is manipulated in microfabrication processes where controlled etching of integrated silica is needed.
In hostile commercial environments– such as chemical handling, semiconductor damp benches, and high-purity fluid handling– quartz porcelains serve as linings, sight glasses, and activator parts where contamination have to be reduced.
3. Production Processes and Geometric Engineering of Quartz Porcelain Elements
3.1 Thawing and Developing Techniques
The manufacturing of quartz ceramics includes several specialized melting methods, each customized to details purity and application needs.
Electric arc melting utilizes high-purity quartz sand thawed in a water-cooled copper crucible under vacuum cleaner or inert gas, creating big boules or tubes with exceptional thermal and mechanical properties.
Fire combination, or burning synthesis, entails shedding silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen flame, depositing great silica particles that sinter right into a clear preform– this method yields the highest possible optical top quality and is made use of for artificial integrated silica.
Plasma melting offers an alternate course, supplying ultra-high temperature levels and contamination-free handling for niche aerospace and defense applications.
As soon as thawed, quartz ceramics can be formed with precision spreading, centrifugal forming (for tubes), or CNC machining of pre-sintered spaces.
As a result of their brittleness, machining needs diamond devices and mindful control to stay clear of microcracking.
3.2 Precision Construction and Surface Ending Up
Quartz ceramic elements are typically made into complex geometries such as crucibles, tubes, rods, windows, and custom-made insulators for semiconductor, photovoltaic or pv, and laser markets.
Dimensional precision is important, specifically in semiconductor production where quartz susceptors and bell containers must maintain precise positioning and thermal uniformity.
Surface area ending up plays a vital role in performance; sleek surfaces lower light spreading in optical components and reduce nucleation websites for devitrification in high-temperature applications.
Etching with buffered HF solutions can generate controlled surface textures or get rid of damaged layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz ceramics are cleaned up and baked to get rid of surface-adsorbed gases, making certain marginal outgassing and compatibility with sensitive processes like molecular beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Role in Semiconductor and Photovoltaic Manufacturing
Quartz porcelains are foundational products in the construction of incorporated circuits and solar cells, where they serve as heating system tubes, wafer boats (susceptors), and diffusion chambers.
Their ability to stand up to high temperatures in oxidizing, minimizing, or inert environments– integrated with low metallic contamination– ensures procedure pureness and return.
Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz components keep dimensional security and resist bending, protecting against wafer damage and imbalance.
In photovoltaic or pv production, quartz crucibles are used to grow monocrystalline silicon ingots through the Czochralski process, where their pureness straight influences the electrical quality of the final solar cells.
4.2 Use in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lamps and UV sterilization systems, quartz ceramic envelopes include plasma arcs at temperature levels exceeding 1000 ° C while transmitting UV and noticeable light effectively.
Their thermal shock resistance prevents failure throughout quick light ignition and closure cycles.
In aerospace, quartz porcelains are utilized in radar windows, sensing unit housings, and thermal protection systems as a result of their low dielectric continuous, high strength-to-density ratio, and stability under aerothermal loading.
In analytical chemistry and life sciences, integrated silica blood vessels are necessary in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness prevents sample adsorption and makes certain exact splitting up.
In addition, quartz crystal microbalances (QCMs), which depend on the piezoelectric residential properties of crystalline quartz (unique from fused silica), make use of quartz porcelains as protective housings and protecting assistances in real-time mass picking up applications.
To conclude, quartz ceramics represent an unique junction of extreme thermal strength, optical openness, and chemical purity.
Their amorphous structure and high SiO two web content enable efficiency in settings where standard materials stop working, from the heart of semiconductor fabs to the side of room.
As modern technology developments toward greater temperatures, greater precision, and cleaner procedures, quartz ceramics will continue to work as a vital enabler of development across science and sector.
