Intro to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic material that has actually obtained widespread recognition for its remarkable thermal conductivity, electrical insulation, and mechanical security at raised temperatures. With a hexagonal wurtzite crystal framework, AlN shows an one-of-a-kind mix of buildings that make it one of the most excellent substrate product for applications in electronics, optoelectronics, power modules, and high-temperature settings. Its ability to efficiently dissipate warmth while keeping exceptional dielectric toughness settings AlN as a superior option to standard ceramic substrates such as alumina and beryllium oxide. This short article checks out the basic qualities of aluminum nitride ceramics, delves into construction methods, and highlights its important functions across advanced technological domains.

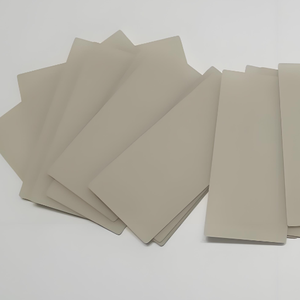

(Aluminum Nitride Ceramics)
Crystal Framework and Essential Quality
The performance of light weight aluminum nitride as a substrate product is mainly determined by its crystalline structure and inherent physical homes. AlN adopts a wurtzite-type lattice made up of alternating light weight aluminum and nitrogen atoms, which contributes to its high thermal conductivity– normally going beyond 180 W/(m · K), with some high-purity samples attaining over 320 W/(m · K). This value substantially goes beyond those of various other commonly used ceramic materials, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal efficiency, AlN possesses a vast bandgap of approximately 6.2 eV, resulting in superb electrical insulation homes even at high temperatures. It also demonstrates low thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an ideal match for semiconductor device product packaging. Additionally, AlN exhibits high chemical inertness and resistance to thaw steels, improving its viability for extreme settings. These combined qualities establish AlN as a top prospect for high-power digital substrates and thermally managed systems.
Fabrication and Sintering Technologies
Producing high-quality light weight aluminum nitride ceramics needs exact powder synthesis and sintering techniques to accomplish thick microstructures with very little impurities. As a result of its covalent bonding nature, AlN does not easily densify with traditional pressureless sintering. Consequently, sintering help such as yttrium oxide (Y TWO O FIVE), calcium oxide (CaO), or uncommon planet components are commonly included in promote liquid-phase sintering and improve grain border diffusion.
The construction procedure typically starts with the carbothermal reduction of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are after that crushed, shaped via techniques like tape casting or injection molding, and sintered at temperature levels between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Warm pressing or stimulate plasma sintering (SPS) can better enhance density and thermal conductivity by decreasing porosity and promoting grain placement. Advanced additive manufacturing methods are also being explored to fabricate complex-shaped AlN parts with tailored thermal management abilities.
Application in Electronic Packaging and Power Modules
One of one of the most noticeable uses of light weight aluminum nitride ceramics remains in electronic packaging, particularly for high-power tools such as protected gateway bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities increase in modern-day electronics, reliable warmth dissipation comes to be crucial to make certain integrity and long life. AlN substrates offer an ideal remedy by combining high thermal conductivity with excellent electric isolation, preventing brief circuits and thermal runaway problems.
In addition, AlN-based direct bonded copper (DBC) and energetic steel brazed (AMB) substrates are significantly employed in power module designs for electrical cars, renewable resource inverters, and commercial motor drives. Contrasted to typical alumina or silicon nitride substrates, AlN uses quicker warm transfer and much better compatibility with silicon chip coefficients of thermal growth, therefore lowering mechanical tension and improving total system efficiency. Continuous research study aims to improve the bonding strength and metallization strategies on AlN surfaces to additional broaden its application scope.
Use in Optoelectronic and High-Temperature Tools
Past electronic packaging, aluminum nitride porcelains play an essential function in optoelectronic and high-temperature applications because of their transparency to ultraviolet (UV) radiation and thermal stability. AlN is widely made use of as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications needing sanitation, picking up, and optical interaction. Its vast bandgap and low absorption coefficient in the UV range make it an optimal candidate for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.
Additionally, AlN’s ability to function accurately at temperature levels surpassing 1000 ° C makes it appropriate for use in sensing units, thermoelectric generators, and elements subjected to extreme thermal tons. In aerospace and protection fields, AlN-based sensor bundles are employed in jet engine surveillance systems and high-temperature control devices where conventional materials would certainly stop working. Continuous advancements in thin-film deposition and epitaxial development techniques are expanding the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Ecological Stability and Long-Term Dependability
A crucial factor to consider for any substrate product is its long-lasting dependability under operational stress and anxieties. Light weight aluminum nitride demonstrates superior environmental security contrasted to several various other ceramics. It is highly immune to deterioration from acids, antacid, and molten metals, guaranteeing resilience in aggressive chemical environments. Nonetheless, AlN is susceptible to hydrolysis when subjected to moisture at elevated temperatures, which can deteriorate its surface area and lower thermal performance.
To minimize this issue, protective coatings such as silicon nitride (Si three N FOUR), aluminum oxide, or polymer-based encapsulation layers are typically put on enhance moisture resistance. Furthermore, cautious securing and product packaging approaches are applied throughout tool assembly to keep the honesty of AlN substrates throughout their service life. As environmental laws come to be more strict, the safe nature of AlN also places it as a recommended option to beryllium oxide, which postures health threats throughout handling and disposal.
Conclusion
Aluminum nitride porcelains represent a class of sophisticated products distinctly suited to deal with the growing needs for efficient thermal monitoring and electric insulation in high-performance digital and optoelectronic systems. Their extraordinary thermal conductivity, chemical security, and compatibility with semiconductor technologies make them one of the most optimal substratum product for a wide variety of applications– from vehicle power components to deep UV LEDs and high-temperature sensors. As construction technologies continue to evolve and affordable production techniques mature, the fostering of AlN substratums is expected to rise substantially, driving innovation in next-generation digital and photonic devices.
