1. Material Principles and Microstructural Attributes of Alumina Ceramics
1.1 Composition, Purity Grades, and Crystallographic Residence

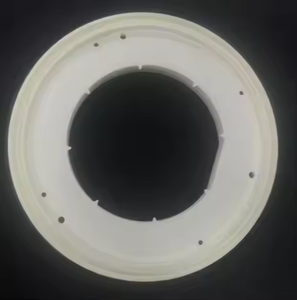

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O TWO), or aluminum oxide, is among one of the most commonly used technical ceramics in commercial design due to its excellent equilibrium of mechanical toughness, chemical stability, and cost-effectiveness.
When engineered right into wear liners, alumina ceramics are commonly fabricated with purity levels ranging from 85% to 99.9%, with higher purity corresponding to improved solidity, put on resistance, and thermal performance.
The dominant crystalline phase is alpha-alumina, which takes on a hexagonal close-packed (HCP) framework identified by solid ionic and covalent bonding, contributing to its high melting factor (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina ceramics include fine, equiaxed grains whose dimension and distribution are controlled during sintering to maximize mechanical buildings.
Grain sizes normally vary from submicron to a number of micrometers, with better grains generally boosting crack sturdiness and resistance to break propagation under abrasive packing.
Minor additives such as magnesium oxide (MgO) are frequently presented in trace total up to prevent unusual grain development during high-temperature sintering, ensuring uniform microstructure and dimensional security.
The resulting product exhibits a Vickers firmness of 1500– 2000 HV, dramatically going beyond that of set steel (usually 600– 800 HV), making it extremely resistant to surface deterioration in high-wear environments.
1.2 Mechanical and Thermal Performance in Industrial Issues
Alumina ceramic wear liners are picked mostly for their outstanding resistance to abrasive, erosive, and moving wear mechanisms common in bulk material dealing with systems.
They possess high compressive strength (up to 3000 MPa), good flexural stamina (300– 500 MPa), and exceptional stiffness (Young’s modulus of ~ 380 GPa), enabling them to stand up to intense mechanical loading without plastic contortion.
Although inherently breakable contrasted to steels, their reduced coefficient of rubbing and high surface firmness minimize bit adhesion and reduce wear rates by orders of size about steel or polymer-based choices.
Thermally, alumina preserves architectural honesty as much as 1600 ° C in oxidizing atmospheres, allowing use in high-temperature processing environments such as kiln feed systems, boiler ducting, and pyroprocessing equipment.

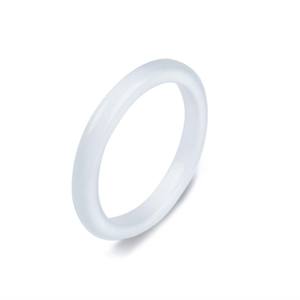

( Alumina Ceramic Wear Liners)
Its reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) adds to dimensional security throughout thermal cycling, lowering the threat of breaking as a result of thermal shock when appropriately set up.
Furthermore, alumina is electrically protecting and chemically inert to the majority of acids, alkalis, and solvents, making it ideal for corrosive environments where metal linings would degrade rapidly.
These consolidated properties make alumina ceramics ideal for protecting vital infrastructure in mining, power generation, cement manufacturing, and chemical processing industries.
2. Manufacturing Processes and Style Combination Approaches
2.1 Shaping, Sintering, and Quality Assurance Protocols
The manufacturing of alumina ceramic wear liners includes a series of precision production steps developed to accomplish high density, very little porosity, and constant mechanical efficiency.
Raw alumina powders are processed through milling, granulation, and creating strategies such as completely dry pressing, isostatic pushing, or extrusion, depending upon the desired geometry– tiles, plates, pipes, or custom-shaped sections.
Eco-friendly bodies are then sintered at temperatures between 1500 ° C and 1700 ° C in air, advertising densification via solid-state diffusion and attaining family member densities surpassing 95%, typically approaching 99% of academic thickness.
Full densification is critical, as recurring porosity functions as tension concentrators and speeds up wear and crack under solution problems.
Post-sintering procedures might consist of diamond grinding or washing to attain limited dimensional resistances and smooth surface finishes that decrease rubbing and bit trapping.
Each set undertakes rigorous quality control, consisting of X-ray diffraction (XRD) for stage evaluation, scanning electron microscopy (SEM) for microstructural examination, and firmness and bend screening to confirm conformity with global criteria such as ISO 6474 or ASTM B407.
2.2 Installing Methods and System Compatibility Factors To Consider
Effective combination of alumina wear liners right into industrial equipment calls for careful focus to mechanical attachment and thermal expansion compatibility.
Common installment methods consist of adhesive bonding using high-strength ceramic epoxies, mechanical securing with studs or anchors, and embedding within castable refractory matrices.
Glue bonding is widely made use of for level or gently bent surfaces, supplying consistent anxiety distribution and vibration damping, while stud-mounted systems enable easy replacement and are chosen in high-impact zones.
To fit differential thermal expansion between alumina and metal substrates (e.g., carbon steel), crafted voids, flexible adhesives, or certified underlayers are included to prevent delamination or cracking during thermal transients.
Developers should also consider edge protection, as ceramic tiles are susceptible to damaging at revealed corners; remedies include diagonal edges, steel shrouds, or overlapping floor tile arrangements.
Correct installment guarantees lengthy life span and maximizes the safety feature of the lining system.
3. Wear Mechanisms and Performance Analysis in Service Environments
3.1 Resistance to Abrasive, Erosive, and Impact Loading
Alumina ceramic wear linings excel in settings controlled by three main wear devices: two-body abrasion, three-body abrasion, and particle erosion.
In two-body abrasion, tough fragments or surface areas directly gouge the liner surface area, an usual occurrence in chutes, hoppers, and conveyor changes.
Three-body abrasion includes loosened particles caught in between the liner and moving product, resulting in rolling and damaging activity that progressively removes product.
Erosive wear happens when high-velocity fragments strike the surface, especially in pneumatic sharing lines and cyclone separators.
Due to its high solidity and reduced crack durability, alumina is most effective in low-impact, high-abrasion situations.
It executes remarkably well versus siliceous ores, coal, fly ash, and cement clinker, where wear rates can be reduced by 10– 50 times contrasted to mild steel liners.
Nevertheless, in applications involving repeated high-energy effect, such as main crusher chambers, hybrid systems integrating alumina ceramic tiles with elastomeric supports or metal shields are usually used to soak up shock and avoid fracture.
3.2 Field Screening, Life Process Analysis, and Failing Mode Assessment
Efficiency analysis of alumina wear linings entails both laboratory testing and area monitoring.
Standard examinations such as the ASTM G65 dry sand rubber wheel abrasion examination supply comparative wear indices, while personalized slurry disintegration gears mimic site-specific conditions.
In commercial setups, put on rate is normally determined in mm/year or g/kWh, with service life estimates based upon first thickness and observed degradation.
Failing settings consist of surface sprucing up, micro-cracking, spalling at sides, and complete floor tile dislodgement as a result of adhesive deterioration or mechanical overload.
Source evaluation usually discloses setup errors, improper grade choice, or unexpected impact loads as main contributors to early failing.
Life process cost evaluation consistently shows that despite greater initial costs, alumina linings provide remarkable total cost of possession as a result of prolonged substitute intervals, reduced downtime, and lower maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Applications Throughout Heavy Industries
Alumina ceramic wear linings are deployed across a broad range of industrial markets where material degradation presents functional and economic challenges.
In mining and mineral handling, they protect transfer chutes, mill liners, hydrocyclones, and slurry pumps from unpleasant slurries consisting of quartz, hematite, and other tough minerals.
In nuclear power plant, alumina floor tiles line coal pulverizer air ducts, boiler ash hoppers, and electrostatic precipitator elements revealed to fly ash erosion.
Cement makers use alumina linings in raw mills, kiln inlet areas, and clinker conveyors to fight the highly rough nature of cementitious materials.
The steel industry uses them in blast heater feed systems and ladle shrouds, where resistance to both abrasion and modest thermal lots is necessary.
Even in less conventional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics give durable defense versus chemically aggressive and fibrous products.
4.2 Emerging Fads: Compound Systems, Smart Liners, and Sustainability
Present research focuses on boosting the sturdiness and performance of alumina wear systems with composite design.
Alumina-zirconia (Al Two O FIVE-ZrO ₂) compounds utilize transformation toughening from zirconia to boost split resistance, while alumina-titanium carbide (Al ₂ O SIX-TiC) grades supply boosted performance in high-temperature sliding wear.
An additional development entails installing sensors within or below ceramic liners to monitor wear progression, temperature level, and influence regularity– allowing predictive maintenance and electronic twin assimilation.
From a sustainability perspective, the extensive service life of alumina liners reduces material usage and waste generation, aligning with round economic climate principles in commercial procedures.
Recycling of invested ceramic liners right into refractory aggregates or building and construction materials is likewise being explored to minimize environmental footprint.
In conclusion, alumina ceramic wear liners represent a cornerstone of modern-day commercial wear security technology.
Their outstanding firmness, thermal security, and chemical inertness, incorporated with fully grown manufacturing and installment practices, make them vital in combating product degradation throughout hefty markets.
As product science advances and digital tracking comes to be extra integrated, the next generation of clever, durable alumina-based systems will certainly further boost operational performance and sustainability in rough environments.
