1. Product Principles and Structural Qualities of Alumina Ceramics
1.1 Structure, Crystallography, and Phase Security

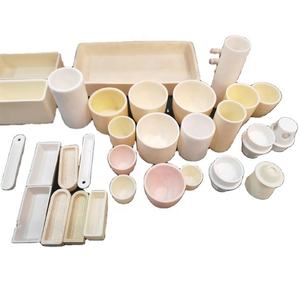

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels fabricated mainly from light weight aluminum oxide (Al two O SIX), one of one of the most commonly utilized sophisticated ceramics because of its exceptional mix of thermal, mechanical, and chemical stability.
The leading crystalline stage in these crucibles is alpha-alumina (Ī±-Al two O THREE), which comes from the corundum framework– a hexagonal close-packed arrangement of oxygen ions with two-thirds of the octahedral interstices occupied by trivalent aluminum ions.
This thick atomic packing causes strong ionic and covalent bonding, conferring high melting factor (2072 Ā° C), exceptional firmness (9 on the Mohs scale), and resistance to sneak and deformation at raised temperature levels.
While pure alumina is optimal for the majority of applications, trace dopants such as magnesium oxide (MgO) are typically included during sintering to hinder grain growth and boost microstructural uniformity, consequently enhancing mechanical stamina and thermal shock resistance.
The stage purity of Ī±-Al ā O four is crucial; transitional alumina stages (e.g., Ī³, Ī“, Īø) that develop at reduced temperature levels are metastable and undergo quantity modifications upon conversion to alpha stage, possibly resulting in cracking or failure under thermal biking.
1.2 Microstructure and Porosity Control in Crucible Manufacture
The efficiency of an alumina crucible is exceptionally affected by its microstructure, which is figured out throughout powder processing, developing, and sintering stages.
High-purity alumina powders (generally 99.5% to 99.99% Al Two O THREE) are formed right into crucible kinds making use of strategies such as uniaxial pushing, isostatic pushing, or slip casting, complied with by sintering at temperatures between 1500 Ā° C and 1700 Ā° C.
Throughout sintering, diffusion devices drive fragment coalescence, lowering porosity and boosting thickness– preferably accomplishing > 99% theoretical thickness to reduce permeability and chemical seepage.
Fine-grained microstructures improve mechanical stamina and resistance to thermal stress, while controlled porosity (in some customized qualities) can enhance thermal shock tolerance by dissipating strain energy.
Surface coating is also essential: a smooth interior surface area reduces nucleation websites for unwanted responses and facilitates very easy elimination of solidified products after handling.
Crucible geometry– including wall surface density, curvature, and base design– is optimized to stabilize warm transfer performance, architectural honesty, and resistance to thermal gradients throughout quick home heating or air conditioning.

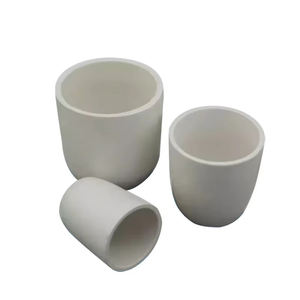

( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Efficiency and Thermal Shock Habits
Alumina crucibles are routinely employed in settings exceeding 1600 Ā° C, making them crucial in high-temperature materials study, steel refining, and crystal growth procedures.
They show reduced thermal conductivity (~ 30 W/m Ā· K), which, while limiting heat transfer rates, also provides a degree of thermal insulation and helps maintain temperature level slopes needed for directional solidification or zone melting.
A vital challenge is thermal shock resistance– the capacity to endure abrupt temperature level adjustments without splitting.
Although alumina has a relatively low coefficient of thermal growth (~ 8 Ć 10 ā»ā¶/ K), its high stiffness and brittleness make it at risk to fracture when based on steep thermal gradients, especially throughout rapid home heating or quenching.
To mitigate this, customers are advised to comply with regulated ramping protocols, preheat crucibles progressively, and stay clear of straight exposure to open up flames or chilly surface areas.
Advanced grades integrate zirconia (ZrO ā) toughening or rated compositions to enhance split resistance through devices such as stage makeover toughening or residual compressive tension generation.
2.2 Chemical Inertness and Compatibility with Reactive Melts
One of the defining benefits of alumina crucibles is their chemical inertness towards a variety of molten metals, oxides, and salts.
They are highly immune to standard slags, liquified glasses, and numerous metallic alloys, consisting of iron, nickel, cobalt, and their oxides, that makes them ideal for use in metallurgical analysis, thermogravimetric experiments, and ceramic sintering.
However, they are not widely inert: alumina reacts with strongly acidic fluxes such as phosphoric acid or boron trioxide at heats, and it can be corroded by molten alkalis like salt hydroxide or potassium carbonate.
Specifically important is their interaction with light weight aluminum steel and aluminum-rich alloys, which can reduce Al two O five using the response: 2Al + Al ā O SIX ā 3Al ā O (suboxide), bring about pitting and eventual failing.
In a similar way, titanium, zirconium, and rare-earth metals exhibit high sensitivity with alumina, forming aluminides or intricate oxides that jeopardize crucible integrity and contaminate the melt.
For such applications, different crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are liked.
3. Applications in Scientific Study and Industrial Processing
3.1 Duty in Materials Synthesis and Crystal Development
Alumina crucibles are central to numerous high-temperature synthesis courses, including solid-state reactions, change development, and thaw handling of useful ceramics and intermetallics.
In solid-state chemistry, they work as inert containers for calcining powders, synthesizing phosphors, or preparing precursor materials for lithium-ion battery cathodes.
For crystal growth strategies such as the Czochralski or Bridgman methods, alumina crucibles are utilized to contain molten oxides like yttrium light weight aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness guarantees marginal contamination of the expanding crystal, while their dimensional stability supports reproducible growth conditions over prolonged periods.
In flux development, where single crystals are expanded from a high-temperature solvent, alumina crucibles should withstand dissolution by the flux tool– generally borates or molybdates– calling for mindful option of crucible quality and processing criteria.
3.2 Use in Analytical Chemistry and Industrial Melting Operations
In analytical laboratories, alumina crucibles are basic tools in thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC), where specific mass measurements are made under controlled atmospheres and temperature ramps.
Their non-magnetic nature, high thermal stability, and compatibility with inert and oxidizing environments make them perfect for such precision dimensions.
In commercial settings, alumina crucibles are employed in induction and resistance heaters for melting rare-earth elements, alloying, and casting operations, specifically in fashion jewelry, dental, and aerospace component production.
They are additionally used in the production of technological porcelains, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and make certain consistent heating.
4. Limitations, Handling Practices, and Future Product Enhancements
4.1 Functional Restrictions and Ideal Practices for Long Life
Despite their robustness, alumina crucibles have distinct functional limits that must be respected to make sure safety and performance.
Thermal shock stays the most common reason for failure; as a result, steady home heating and cooling cycles are necessary, specifically when transitioning through the 400– 600 Ā° C variety where residual stress and anxieties can gather.
Mechanical damages from mishandling, thermal biking, or contact with hard products can initiate microcracks that propagate under tension.
Cleansing must be carried out thoroughly– staying clear of thermal quenching or rough approaches– and used crucibles ought to be inspected for indicators of spalling, staining, or deformation prior to reuse.
Cross-contamination is one more problem: crucibles used for responsive or harmful materials should not be repurposed for high-purity synthesis without thorough cleansing or must be disposed of.
4.2 Arising Fads in Composite and Coated Alumina Solutions
To expand the capabilities of standard alumina crucibles, researchers are establishing composite and functionally graded products.
Instances include alumina-zirconia (Al ā O SIX-ZrO TWO) composites that improve strength and thermal shock resistance, or alumina-silicon carbide (Al two O ā-SiC) versions that enhance thermal conductivity for more consistent heating.
Surface area coatings with rare-earth oxides (e.g., yttria or scandia) are being checked out to produce a diffusion barrier versus responsive steels, consequently increasing the variety of suitable thaws.
Furthermore, additive manufacturing of alumina components is emerging, enabling custom-made crucible geometries with internal channels for temperature tracking or gas circulation, opening new opportunities in process control and reactor layout.
In conclusion, alumina crucibles stay a keystone of high-temperature technology, valued for their reliability, pureness, and adaptability throughout clinical and commercial domain names.
Their proceeded evolution with microstructural design and hybrid product design guarantees that they will certainly continue to be crucial devices in the innovation of products scientific research, energy technologies, and advanced manufacturing.
