1. Structure and Structural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Stability

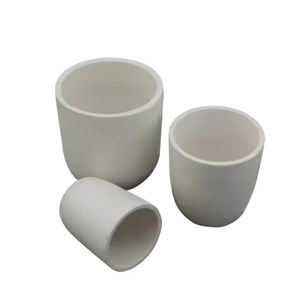

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from merged silica, a synthetic kind of silicon dioxide (SiO ₂) stemmed from the melting of natural quartz crystals at temperature levels going beyond 1700 ° C.
Unlike crystalline quartz, merged silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which imparts remarkable thermal shock resistance and dimensional stability under rapid temperature changes.
This disordered atomic framework prevents cleavage along crystallographic airplanes, making merged silica less prone to cracking throughout thermal cycling compared to polycrystalline ceramics.
The material displays a low coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), one of the most affordable amongst engineering materials, allowing it to stand up to extreme thermal slopes without fracturing– an essential home in semiconductor and solar cell production.
Fused silica additionally preserves exceptional chemical inertness against most acids, liquified metals, and slags, although it can be gradually etched by hydrofluoric acid and warm phosphoric acid.
Its high conditioning point (~ 1600– 1730 ° C, depending upon pureness and OH web content) allows continual procedure at elevated temperature levels needed for crystal development and steel refining processes.
1.2 Pureness Grading and Trace Element Control
The performance of quartz crucibles is extremely based on chemical purity, especially the concentration of metallic contaminations such as iron, sodium, potassium, light weight aluminum, and titanium.
Even trace quantities (parts per million level) of these impurities can migrate into molten silicon throughout crystal development, weakening the electrical homes of the resulting semiconductor material.
High-purity qualities used in electronics producing commonly consist of over 99.95% SiO TWO, with alkali metal oxides limited to much less than 10 ppm and change metals below 1 ppm.
Pollutants originate from raw quartz feedstock or processing tools and are reduced with cautious option of mineral sources and filtration strategies like acid leaching and flotation protection.
Furthermore, the hydroxyl (OH) content in merged silica impacts its thermomechanical habits; high-OH kinds provide much better UV transmission but reduced thermal stability, while low-OH variants are preferred for high-temperature applications because of minimized bubble development.

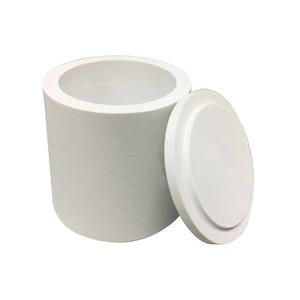

( Quartz Crucibles)
2. Production Refine and Microstructural Style
2.1 Electrofusion and Developing Techniques
Quartz crucibles are mainly produced by means of electrofusion, a procedure in which high-purity quartz powder is fed right into a rotating graphite mold and mildew within an electric arc heating system.
An electric arc created between carbon electrodes thaws the quartz bits, which strengthen layer by layer to form a seamless, thick crucible shape.
This technique generates a fine-grained, uniform microstructure with very little bubbles and striae, vital for uniform warm distribution and mechanical honesty.
Alternative approaches such as plasma combination and fire fusion are used for specialized applications needing ultra-low contamination or certain wall surface thickness profiles.
After casting, the crucibles undergo regulated cooling (annealing) to ease inner stresses and protect against spontaneous splitting throughout service.
Surface finishing, including grinding and brightening, makes sure dimensional accuracy and decreases nucleation websites for undesirable formation during use.
2.2 Crystalline Layer Design and Opacity Control
A defining function of contemporary quartz crucibles, particularly those made use of in directional solidification of multicrystalline silicon, is the engineered internal layer framework.
Throughout manufacturing, the inner surface area is usually dealt with to promote the formation of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO TWO– upon initial home heating.
This cristobalite layer acts as a diffusion obstacle, reducing direct interaction between liquified silicon and the underlying merged silica, therefore lessening oxygen and metal contamination.
Additionally, the presence of this crystalline stage boosts opacity, enhancing infrared radiation absorption and advertising more uniform temperature level circulation within the melt.
Crucible designers thoroughly balance the thickness and connection of this layer to prevent spalling or splitting because of volume modifications during phase transitions.
3. Practical Efficiency in High-Temperature Applications
3.1 Function in Silicon Crystal Growth Processes
Quartz crucibles are crucial in the manufacturing of monocrystalline and multicrystalline silicon, acting as the key container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped into molten silicon kept in a quartz crucible and gradually pulled upwards while turning, enabling single-crystal ingots to form.
Although the crucible does not straight speak to the expanding crystal, communications between molten silicon and SiO ₂ walls lead to oxygen dissolution into the melt, which can influence carrier life time and mechanical toughness in ended up wafers.
In DS processes for photovoltaic-grade silicon, large quartz crucibles allow the regulated air conditioning of thousands of kilograms of molten silicon into block-shaped ingots.
Right here, finishings such as silicon nitride (Si four N ₄) are applied to the inner surface area to stop bond and promote easy release of the strengthened silicon block after cooling down.
3.2 Deterioration Mechanisms and Life Span Limitations
In spite of their robustness, quartz crucibles break down during repeated high-temperature cycles as a result of numerous related systems.
Viscous circulation or contortion takes place at long term direct exposure over 1400 ° C, causing wall thinning and loss of geometric stability.
Re-crystallization of integrated silica into cristobalite produces interior stresses because of volume development, possibly creating splits or spallation that infect the thaw.
Chemical erosion arises from decrease responses in between molten silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), creating unstable silicon monoxide that gets away and damages the crucible wall.
Bubble development, driven by caught gases or OH teams, better jeopardizes architectural toughness and thermal conductivity.
These deterioration pathways restrict the variety of reuse cycles and require accurate procedure control to optimize crucible life expectancy and product return.
4. Emerging Advancements and Technological Adaptations
4.1 Coatings and Composite Alterations
To boost performance and toughness, progressed quartz crucibles include practical finishings and composite frameworks.
Silicon-based anti-sticking layers and drugged silica finishings enhance release attributes and lower oxygen outgassing throughout melting.
Some makers incorporate zirconia (ZrO ₂) bits into the crucible wall to increase mechanical strength and resistance to devitrification.
Research is continuous right into fully clear or gradient-structured crucibles made to enhance induction heat transfer in next-generation solar furnace styles.
4.2 Sustainability and Recycling Obstacles
With enhancing demand from the semiconductor and photovoltaic industries, sustainable use quartz crucibles has actually become a top priority.
Used crucibles polluted with silicon deposit are hard to reuse as a result of cross-contamination risks, leading to substantial waste generation.
Efforts focus on developing reusable crucible linings, improved cleaning methods, and closed-loop recycling systems to recuperate high-purity silica for secondary applications.
As gadget effectiveness demand ever-higher product purity, the function of quartz crucibles will remain to develop via innovation in products science and procedure design.
In summary, quartz crucibles stand for a vital user interface between basic materials and high-performance electronic products.
Their special mix of pureness, thermal resilience, and structural layout makes it possible for the construction of silicon-based technologies that power contemporary computing and renewable energy systems.
