Introduction: Trick devices in power electronics
Silicon-controlled rectifiers (SCRs), likewise referred to as thyristors, are semiconductor power devices with a four-layer three-way joint framework (PNPN). Since its intro in the 1950s, SCRs have been extensively used in industrial automation, power systems, home appliance control and other fields due to their high withstand voltage, huge present carrying capacity, rapid reaction and basic control. With the growth of technology, SCRs have advanced into numerous types, including unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions between these kinds are not only reflected in the framework and functioning principle, however likewise establish their applicability in different application situations. This post will certainly start from a technological viewpoint, integrated with details specifications, to deeply examine the main distinctions and typical uses these 4 SCRs.
Unidirectional SCR: Basic and steady application core
Unidirectional SCR is the most basic and usual kind of thyristor. Its framework is a four-layer three-junction PNPN plan, including 3 electrodes: anode (A), cathode (K) and gateway (G). It just allows present to move in one instructions (from anode to cathode) and activates after eviction is caused. As soon as switched on, even if eviction signal is eliminated, as long as the anode current is higher than the holding existing (normally much less than 100mA), the SCR stays on.

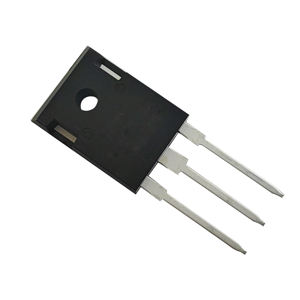

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and existing tolerance, with an onward repetitive optimal voltage (V DRM) of up to 6500V and a rated on-state typical existing (ITAV) of up to 5000A. Therefore, it is widely made use of in DC motor control, commercial heating systems, uninterruptible power supply (UPS) correction parts, power conditioning tools and other occasions that call for continuous transmission and high power processing. Its benefits are basic structure, affordable and high dependability, and it is a core element of lots of standard power control systems.
Bidirectional SCR (TRIAC): Suitable for air conditioner control
Unlike unidirectional SCR, bidirectional SCR, additionally known as TRIAC, can achieve bidirectional transmission in both favorable and negative fifty percent cycles. This framework consists of two anti-parallel SCRs, which permit TRIAC to be activated and switched on any time in the a/c cycle without altering the circuit link method. The symmetrical conduction voltage range of TRIAC is usually ± 400 ~ 800V, the maximum tons current has to do with 100A, and the trigger current is less than 50mA.
As a result of the bidirectional conduction features of TRIAC, it is especially appropriate for air conditioner dimming and rate control in family home appliances and customer electronics. For example, gadgets such as lamp dimmers, fan controllers, and ac system fan speed regulators all depend on TRIAC to accomplish smooth power law. On top of that, TRIAC also has a reduced driving power need and is suitable for incorporated design, so it has been extensively used in clever home systems and little devices. Although the power thickness and changing rate of TRIAC are not like those of new power devices, its affordable and convenient usage make it a crucial gamer in the area of tiny and moderate power air conditioning control.
Gateway Turn-Off Thyristor (GTO): A high-performance agent of energetic control
Entrance Turn-Off Thyristor (GTO) is a high-performance power device developed on the basis of standard SCR. Unlike normal SCR, which can only be turned off passively, GTO can be turned off actively by using an adverse pulse current to the gate, therefore attaining even more versatile control. This function makes GTO do well in systems that need regular start-stop or quick action.

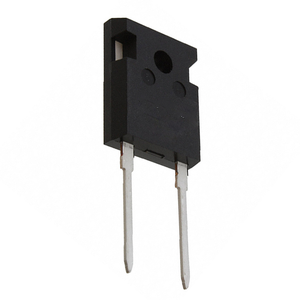

(Thyristor Rectifier)
The technical specifications of GTO reveal that it has incredibly high power handling ability: the turn-off gain has to do with 4 ~ 5, the maximum operating voltage can get to 6000V, and the maximum operating current depends on 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These efficiency signs make GTO commonly made use of in high-power situations such as electric engine traction systems, big inverters, commercial electric motor frequency conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is reasonably complicated and has high switching losses, its performance under high power and high dynamic response demands is still irreplaceable.
Light-controlled thyristor (LTT): A reputable selection in the high-voltage seclusion environment
Light-controlled thyristor (LTT) makes use of optical signals instead of electric signals to trigger conduction, which is its largest function that differentiates it from other types of SCRs. The optical trigger wavelength of LTT is generally in between 850nm and 950nm, the response time is gauged in nanoseconds, and the insulation level can be as high as 100kV or over. This optoelectronic isolation system significantly improves the system’s anti-electromagnetic interference ability and security.
LTT is mainly made use of in ultra-high voltage straight present transmission (UHVDC), power system relay defense tools, electromagnetic compatibility security in clinical equipment, and army radar interaction systems etc, which have exceptionally high needs for safety and security. For instance, numerous converter stations in China’s “West-to-East Power Transmission” job have taken on LTT-based converter valve components to make certain steady procedure under incredibly high voltage problems. Some advanced LTTs can additionally be combined with gate control to attain bidirectional transmission or turn-off functions, additionally broadening their application array and making them a perfect choice for addressing high-voltage and high-current control troubles.
