1. Crystal Structure and Bonding Nature of Ti ₂ AlC
1.1 Limit Phase Family and Atomic Piling Sequence

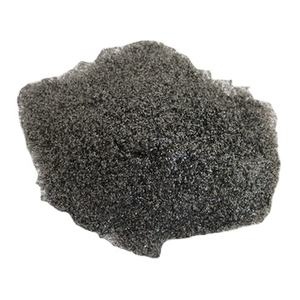

(Ti2AlC MAX Phase Powder)
Ti two AlC belongs to the MAX stage family members, a course of nanolaminated ternary carbides and nitrides with the general formula Mₙ ₊₁ AXₙ, where M is an early change metal, A is an A-group element, and X is carbon or nitrogen.
In Ti ₂ AlC, titanium (Ti) serves as the M element, aluminum (Al) as the A component, and carbon (C) as the X aspect, forming a 211 structure (n=1) with alternating layers of Ti six C octahedra and Al atoms piled along the c-axis in a hexagonal latticework.
This one-of-a-kind split architecture integrates solid covalent bonds within the Ti– C layers with weak metal bonds between the Ti and Al planes, causing a hybrid material that displays both ceramic and metallic features.
The robust Ti– C covalent network gives high rigidity, thermal stability, and oxidation resistance, while the metal Ti– Al bonding allows electrical conductivity, thermal shock resistance, and damages tolerance uncommon in conventional ceramics.
This duality occurs from the anisotropic nature of chemical bonding, which permits energy dissipation systems such as kink-band development, delamination, and basal plane fracturing under stress and anxiety, as opposed to devastating brittle crack.
1.2 Digital Structure and Anisotropic Characteristics
The digital arrangement of Ti ₂ AlC features overlapping d-orbitals from titanium and p-orbitals from carbon and aluminum, leading to a high density of states at the Fermi degree and inherent electrical and thermal conductivity along the basic airplanes.
This metallic conductivity– unusual in ceramic materials– makes it possible for applications in high-temperature electrodes, current enthusiasts, and electro-magnetic protecting.
Property anisotropy is noticable: thermal growth, elastic modulus, and electrical resistivity vary considerably in between the a-axis (in-plane) and c-axis (out-of-plane) directions due to the layered bonding.
For instance, thermal growth along the c-axis is lower than along the a-axis, adding to boosted resistance to thermal shock.
Additionally, the material presents a reduced Vickers hardness (~ 4– 6 Grade point average) contrasted to conventional ceramics like alumina or silicon carbide, yet preserves a high Youthful’s modulus (~ 320 Grade point average), reflecting its unique combination of softness and tightness.
This balance makes Ti two AlC powder specifically ideal for machinable ceramics and self-lubricating compounds.
( Ti2AlC MAX Phase Powder)
2. Synthesis and Processing of Ti Two AlC Powder
2.1 Solid-State and Advanced Powder Production Techniques
Ti two AlC powder is mostly synthesized with solid-state reactions between essential or compound forerunners, such as titanium, aluminum, and carbon, under high-temperature problems (1200– 1500 ° C )in inert or vacuum cleaner atmospheres.
The reaction: 2Ti + Al + C → Ti two AlC, have to be very carefully regulated to prevent the development of contending stages like TiC, Ti Four Al, or TiAl, which deteriorate practical performance.
Mechanical alloying followed by warm therapy is one more commonly made use of technique, where essential powders are ball-milled to achieve atomic-level mixing prior to annealing to develop limit phase.
This method enables fine particle size control and homogeneity, necessary for advanced consolidation techniques.
Much more sophisticated techniques, such as spark plasma sintering (SPS), chemical vapor deposition (CVD), and molten salt synthesis, deal routes to phase-pure, nanostructured, or oriented Ti two AlC powders with tailored morphologies.
Molten salt synthesis, specifically, enables lower response temperatures and far better bit diffusion by functioning as a flux tool that boosts diffusion kinetics.
2.2 Powder Morphology, Pureness, and Taking Care Of Considerations
The morphology of Ti two AlC powder– ranging from uneven angular fragments to platelet-like or round granules– depends on the synthesis course and post-processing steps such as milling or classification.
Platelet-shaped bits reflect the fundamental split crystal framework and are advantageous for enhancing composites or producing distinctive mass materials.
High phase purity is important; also small amounts of TiC or Al two O six impurities can substantially alter mechanical, electrical, and oxidation habits.
X-ray diffraction (XRD) and electron microscopy (SEM/TEM) are consistently utilized to evaluate phase make-up and microstructure.
Due to light weight aluminum’s sensitivity with oxygen, Ti ₂ AlC powder is vulnerable to surface area oxidation, creating a slim Al two O six layer that can passivate the material however might hinder sintering or interfacial bonding in compounds.
As a result, storage space under inert atmosphere and handling in regulated environments are vital to protect powder integrity.
3. Practical Actions and Efficiency Mechanisms
3.1 Mechanical Resilience and Damage Resistance
One of one of the most remarkable functions of Ti ₂ AlC is its ability to endure mechanical damages without fracturing catastrophically, a residential property referred to as “damage resistance” or “machinability” in porcelains.
Under load, the material suits stress via devices such as microcracking, basic airplane delamination, and grain limit gliding, which dissipate power and stop crack proliferation.
This actions contrasts sharply with traditional ceramics, which normally stop working unexpectedly upon reaching their flexible limit.
Ti two AlC parts can be machined using conventional devices without pre-sintering, a rare ability among high-temperature ceramics, decreasing production expenses and allowing complicated geometries.
Furthermore, it exhibits outstanding thermal shock resistance because of reduced thermal growth and high thermal conductivity, making it suitable for elements subjected to rapid temperature modifications.
3.2 Oxidation Resistance and High-Temperature Stability
At elevated temperatures (as much as 1400 ° C in air), Ti ₂ AlC develops a safety alumina (Al two O ₃) scale on its surface, which functions as a diffusion obstacle against oxygen ingress, significantly slowing down additional oxidation.
This self-passivating behavior is analogous to that seen in alumina-forming alloys and is essential for long-term security in aerospace and power applications.
However, over 1400 ° C, the development of non-protective TiO ₂ and internal oxidation of light weight aluminum can bring about sped up destruction, restricting ultra-high-temperature use.
In minimizing or inert settings, Ti ₂ AlC keeps architectural integrity up to 2000 ° C, showing phenomenal refractory qualities.
Its resistance to neutron irradiation and reduced atomic number additionally make it a candidate material for nuclear blend activator elements.
4. Applications and Future Technical Combination
4.1 High-Temperature and Architectural Components
Ti two AlC powder is made use of to fabricate bulk porcelains and finishes for severe atmospheres, including generator blades, heating elements, and heater components where oxidation resistance and thermal shock tolerance are paramount.
Hot-pressed or stimulate plasma sintered Ti two AlC shows high flexural toughness and creep resistance, exceeding several monolithic ceramics in cyclic thermal loading situations.
As a covering material, it protects metal substratums from oxidation and put on in aerospace and power generation systems.
Its machinability allows for in-service repair and accuracy completing, a significant advantage over fragile porcelains that call for diamond grinding.
4.2 Useful and Multifunctional Material Equipments
Past architectural duties, Ti ₂ AlC is being discovered in useful applications leveraging its electrical conductivity and layered structure.
It works as a precursor for synthesizing two-dimensional MXenes (e.g., Ti three C ₂ Tₓ) by means of careful etching of the Al layer, allowing applications in energy storage, sensing units, and electro-magnetic interference securing.
In composite products, Ti two AlC powder improves the strength and thermal conductivity of ceramic matrix compounds (CMCs) and metal matrix composites (MMCs).
Its lubricious nature under heat– as a result of very easy basic aircraft shear– makes it appropriate for self-lubricating bearings and moving components in aerospace mechanisms.
Emerging research study focuses on 3D printing of Ti ₂ AlC-based inks for net-shape manufacturing of complex ceramic parts, pressing the borders of additive production in refractory materials.
In summary, Ti two AlC MAX phase powder stands for a standard change in ceramic products science, connecting the space in between steels and ceramics via its split atomic architecture and hybrid bonding.
Its one-of-a-kind mix of machinability, thermal stability, oxidation resistance, and electrical conductivity enables next-generation parts for aerospace, energy, and advanced manufacturing.
As synthesis and handling technologies grow, Ti ₂ AlC will play a significantly important duty in engineering products made for extreme and multifunctional atmospheres.
