1. Chemical and Structural Principles of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

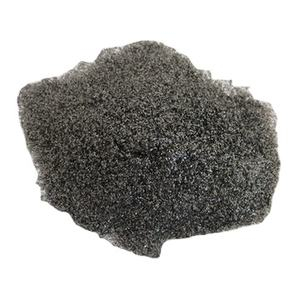

(Boron Carbide Podwer)
Boron carbide (B FOUR C) is a non-metallic ceramic substance renowned for its extraordinary firmness, thermal security, and neutron absorption capability, positioning it among the hardest known materials– gone beyond only by cubic boron nitride and ruby.
Its crystal structure is based on a rhombohedral lattice made up of 12-atom icosahedra (mainly B ₁₂ or B ₁₁ C) adjoined by straight C-B-C or C-B-B chains, forming a three-dimensional covalent network that imparts amazing mechanical strength.
Unlike several ceramics with fixed stoichiometry, boron carbide shows a large range of compositional flexibility, generally varying from B ₄ C to B ₁₀. ₃ C, as a result of the replacement of carbon atoms within the icosahedra and architectural chains.
This variability influences vital properties such as solidity, electric conductivity, and thermal neutron capture cross-section, enabling building tuning based upon synthesis conditions and intended application.
The visibility of intrinsic defects and disorder in the atomic setup additionally adds to its distinct mechanical habits, consisting of a sensation known as “amorphization under stress” at high pressures, which can restrict performance in severe effect situations.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is mainly generated through high-temperature carbothermal decrease of boron oxide (B ₂ O SIX) with carbon sources such as oil coke or graphite in electric arc heaters at temperatures in between 1800 ° C and 2300 ° C.
The reaction continues as: B TWO O ₃ + 7C → 2B FOUR C + 6CO, producing rugged crystalline powder that needs subsequent milling and purification to attain fine, submicron or nanoscale particles appropriate for advanced applications.
Alternative techniques such as laser-assisted chemical vapor deposition (CVD), sol-gel processing, and mechanochemical synthesis offer routes to greater purity and controlled particle dimension distribution, though they are usually limited by scalability and cost.
Powder attributes– consisting of particle size, form, heap state, and surface chemistry– are crucial parameters that affect sinterability, packaging thickness, and final component efficiency.
For example, nanoscale boron carbide powders show boosted sintering kinetics due to high surface energy, allowing densification at reduced temperatures, yet are vulnerable to oxidation and need safety atmospheres during handling and handling.
Surface functionalization and coating with carbon or silicon-based layers are progressively utilized to boost dispersibility and prevent grain development during combination.
( Boron Carbide Podwer)
2. Mechanical Qualities and Ballistic Efficiency Mechanisms
2.1 Firmness, Crack Durability, and Wear Resistance
Boron carbide powder is the precursor to one of one of the most effective lightweight armor materials available, owing to its Vickers hardness of roughly 30– 35 GPa, which allows it to wear down and blunt incoming projectiles such as bullets and shrapnel.
When sintered right into thick ceramic floor tiles or integrated right into composite armor systems, boron carbide exceeds steel and alumina on a weight-for-weight basis, making it excellent for employees protection, lorry armor, and aerospace protecting.
Nevertheless, regardless of its high hardness, boron carbide has fairly low crack sturdiness (2.5– 3.5 MPa · m ONE / TWO), making it prone to fracturing under localized impact or duplicated loading.
This brittleness is intensified at high pressure rates, where vibrant failing mechanisms such as shear banding and stress-induced amorphization can bring about disastrous loss of architectural honesty.
Recurring research study focuses on microstructural engineering– such as presenting secondary stages (e.g., silicon carbide or carbon nanotubes), creating functionally graded compounds, or designing ordered architectures– to minimize these limitations.
2.2 Ballistic Energy Dissipation and Multi-Hit Capacity
In personal and automobile shield systems, boron carbide tiles are generally backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that absorb residual kinetic energy and include fragmentation.
Upon effect, the ceramic layer fractures in a regulated fashion, dissipating energy via devices consisting of bit fragmentation, intergranular cracking, and phase makeover.
The fine grain structure originated from high-purity, nanoscale boron carbide powder improves these power absorption processes by raising the thickness of grain boundaries that hinder fracture proliferation.
Current developments in powder processing have led to the advancement of boron carbide-based ceramic-metal compounds (cermets) and nano-laminated structures that improve multi-hit resistance– an essential need for armed forces and police applications.
These engineered products preserve safety performance even after first impact, attending to an essential limitation of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Engineering Applications
3.1 Communication with Thermal and Quick Neutrons
Beyond mechanical applications, boron carbide powder plays a vital function in nuclear modern technology because of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated into control rods, protecting products, or neutron detectors, boron carbide properly manages fission reactions by capturing neutrons and going through the ¹⁰ B( n, α) seven Li nuclear response, producing alpha particles and lithium ions that are conveniently consisted of.
This property makes it indispensable in pressurized water activators (PWRs), boiling water reactors (BWRs), and research study activators, where precise neutron flux control is vital for safe operation.
The powder is frequently fabricated into pellets, layers, or distributed within metal or ceramic matrices to develop composite absorbers with tailored thermal and mechanical homes.
3.2 Security Under Irradiation and Long-Term Performance
A vital benefit of boron carbide in nuclear atmospheres is its high thermal security and radiation resistance up to temperatures surpassing 1000 ° C.
Nevertheless, prolonged neutron irradiation can cause helium gas build-up from the (n, α) response, causing swelling, microcracking, and destruction of mechanical stability– a sensation known as “helium embrittlement.”
To mitigate this, researchers are creating drugged boron carbide formulations (e.g., with silicon or titanium) and composite styles that fit gas launch and maintain dimensional stability over extended life span.
Furthermore, isotopic enrichment of ¹⁰ B enhances neutron capture efficiency while minimizing the complete product quantity required, improving reactor layout adaptability.
4. Arising and Advanced Technological Integrations
4.1 Additive Production and Functionally Rated Components
Current progress in ceramic additive production has actually made it possible for the 3D printing of intricate boron carbide elements making use of methods such as binder jetting and stereolithography.
In these procedures, fine boron carbide powder is selectively bound layer by layer, complied with by debinding and high-temperature sintering to attain near-full thickness.
This capability allows for the construction of customized neutron shielding geometries, impact-resistant lattice structures, and multi-material systems where boron carbide is integrated with steels or polymers in functionally graded designs.
Such styles optimize performance by incorporating firmness, sturdiness, and weight effectiveness in a single part, opening new frontiers in protection, aerospace, and nuclear design.
4.2 High-Temperature and Wear-Resistant Commercial Applications
Beyond protection and nuclear sectors, boron carbide powder is used in unpleasant waterjet reducing nozzles, sandblasting liners, and wear-resistant layers due to its severe solidity and chemical inertness.
It outperforms tungsten carbide and alumina in abrasive environments, specifically when exposed to silica sand or other hard particulates.
In metallurgy, it works as a wear-resistant lining for receptacles, chutes, and pumps managing rough slurries.
Its reduced density (~ 2.52 g/cm ³) more enhances its allure in mobile and weight-sensitive industrial devices.
As powder quality improves and processing technologies breakthrough, boron carbide is poised to increase into next-generation applications including thermoelectric products, semiconductor neutron detectors, and space-based radiation protecting.
In conclusion, boron carbide powder represents a cornerstone product in extreme-environment design, combining ultra-high hardness, neutron absorption, and thermal durability in a single, flexible ceramic system.
Its role in guarding lives, enabling nuclear energy, and progressing commercial effectiveness emphasizes its strategic importance in contemporary technology.
With continued innovation in powder synthesis, microstructural style, and manufacturing assimilation, boron carbide will certainly continue to be at the center of advanced materials development for years to come.
